CMAC 5030K-Z2, SKF, Laser tachometer kit - ATEX certified (KIT, COMPACTTACH, LASER/CBL/TRIPOD, ZONE 2)

Hardware, EAN code: 7316575148683

SKF Authorised distributor logo
Brand SKF
Mfr Part No. CMAC 5030K-Z2
Acorn Code CMAC5030K-Z2-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

XXX

$3,780.98

+

The CMAC 5030K-Z2 laser tachometer kit contains a small tachometer that is ATEX certified; the sensor is designed for use in hazardous areas with certified hazardous area equipment. This kit is primarily designed for phase-related rotational speed applications, including very high speed monitoring. Along with the tachometer, this kit includes a bracket for mounting the tachometer directly to the SKF Microlog using the camera mount located on the bottom of the SKF Microlog. The kit also includes a two-meter cable to connect the tachometer to the SKF Microlog and a small tripod for a stationary mounting of the tachometer during the measurement.
The key features of this laser tachometer kit include:
• Tachometer is ATEX certified
• Operating frequency up to 250 000 r/min
• Long optical range, up to 2 m (6.56 ft.)
• Wide angle of operation, up to 80°
• On target indicator standard
• Protection rating: IP 67
• Integral connector
• Stainless steel housing
• Threaded or plain housing options
• Reverse polarity and short circuit protected
• Material: Stainless steel housing
• Color: Silver
• Optical range: 100 to 2 000 mm (0.33 to 6.56 ft.)
• Cable: Fischer seven pin type 103 to four pin socket, 2 m (6.56 ft.)
• Angle of incidence: ±80°
• Speed range: 0,1 to 250 000 r/min
• Power input: 5 V DC at 30 mA typically
• Operating temperature: -10 to +40 °C (15 to 105 °F)
• IP rating: IP 67
• Housing types: M20 threaded or plain body plus fixing slots
• Connections: Integral connector
• Dimensions: 70 × 20 mm (2.76 × 0.79 in.)
• ATEX certification: BAS02ATEX3259X
- Ex II 3 G
- EEx nL IIC T6

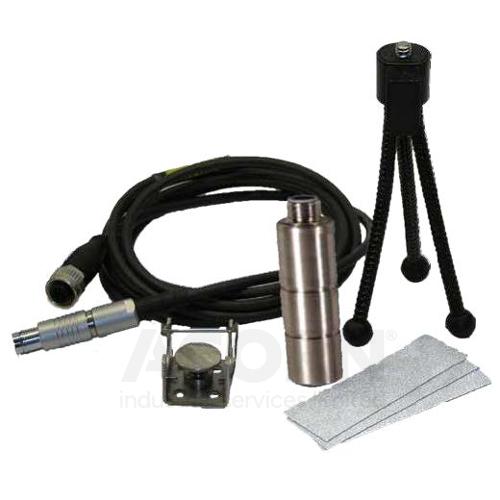

Kit contents:
• Compact laser tachometer
• Mounting bracket
• Reflective tape strips
• Mini mounting tripod
• CMAC 5214: Tachometer interface cable, 2 m (6.56 ft.)

Specification

Product Attributes
Manufacturer Product Code CMAC 5030K-Z2
Basic Product Description Laser tachometer kit - ATEX certified (KIT,COMPACTTACH,LASER/CBL/TRIPOD,ZONE 2)
UOM Kit
Weight (Kg) 0.3
Certification ATEX approved
Material Stainless Steel Body
IP Rating IP 67
Cable Length 2 Mtr
Product type Hardware
EAN 7316575148683
