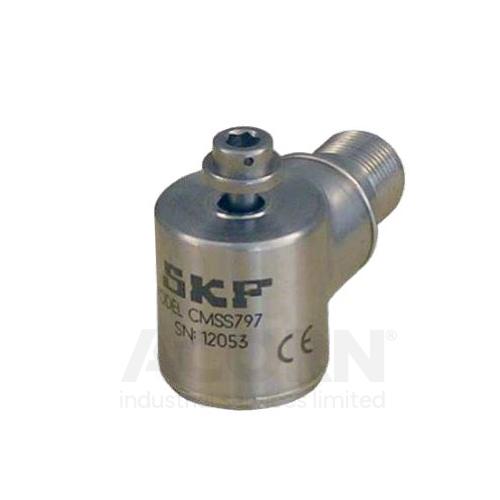

CMSS 797-EE, SKF, Superior, ATEX approved accelerometer, ring mode, side exit (XDCR, ACCL, RNG-MODE, SIRA)

EAN code: 7316571359465

SKF Authorised distributor logo
Brand SKF
Mfr Part No. CMSS 797-EE
Acorn Code CMSS797-EE-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

United States (US)

$1,366.79

+

The CMSS 797L is an industrial accelerometer for higher precision measurements at rotational frequencies as low as 12 r/min. These speeds are most commonly found in the following industries:
• Power Generation (Wind Turbines)
• Pulp and Paper
• Petrochemicals

Applications include rotors, rolls and extruders. The CMSS 797L combines a high sensitivity (to reveal low amplitude signals) with a narrow band of frequency response. The value of the high-pass filtering within the sensor makes it ideal for use in specialized, low speed analysis tasks using portable instruments or at specific measurement points on on-line systems. However, the low-pass filtering makes the CMSS 797L unsuitable as a general purpose accelerometer for rolling element bearing defect detection at more normal rotational speeds.

Features:
• Optimal for use with SKF on-line surveillance and protection systems and all portable data collection instruments
• 500 mV/g high sensitivity
• Ultra low-noise electronics for clear signals at very low vibration levels
• Low-pass filtered to attenuate high frequencies
• Hermetically sealed
• ESD protection
• Reverse wiring protection

Specification

Product Attributes
Manufacturer Product Code CMSS 797-EE
Basic Product Description Superior, ATEX approved accelerometer, ring mode, side exit (XDCR,ACCL,RNG-MODE,SIRA)
Weight (Kg) 0.14
Certification ATEX approved
EAN 7316571359465
