Metal shield on both sides, 30° Contact angle, -30 to +120 °C grease, Normal Clearance (Cn), EAN code: 7316570530308

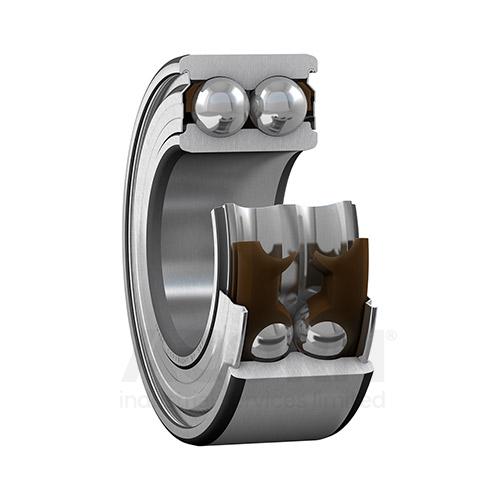

Double row angular contact ball bearings, with seals on both sides, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
• High-speed capability
• Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
• Suitable where a stiff bearing arrangement is required
• Require less axial space than equivalent pair of single row angular contact ball bearings
• Integral sealing prolongs bearing service life
| Manufacturer Product Code | 3210 A-2ZTN9/MT33 |
|---|---|
| Basic Product Description | Double row angular contact ball bearing with seals on both sides |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| od (mm) | 90 |
| Width (mm) | 30.2 |
| Weight (Kg) | 0.677 |
| Lubrication | -30 to +120 °C grease |
| Seals/Shields | Metal shield on both sides |
| Clearance | Normal Clearance (Cn) |
| Cage design | Reinforced moulded polymer |
| Contact Angle | 30° Contact angle |
| Cage material | Polymer cage |
| Bearing Material | Steel |
| EAN-Code | 7316570530308 |
Metal shield on both sides, 40° Contact angle, Normal Clearance (Cn), EAN code: 00029176421990
This item is not currently available from our stocks.
Despatch date information is on request.
Metal shield on both sides, 30° Contact angle, Normal Clearance (Cn), EAN code: 4012802411058
This item is not currently available from our stocks.
Despatch date information is on request.
Metal shield on both sides, 30° Contact angle, Normal Clearance (Cn), EAN code: 0013992228581
Metal shield on both sides, 40° Contact angle, Normal Clearance (Cn), EAN code: 9008745137549
