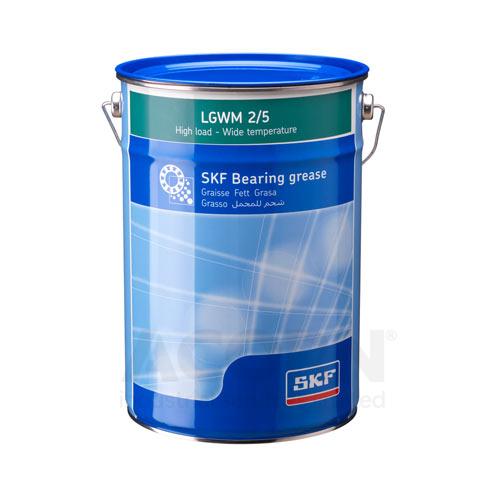

LGWM 2/5, SKF, High load, wide temperature range grease, 5 kg can, 5 Kg Can

Grease, > 300 °C, 60 strokes, 10-1 mm: 280-310; 100000 strokes, 10-1 mm: + 30 max., 50 hours at 80 °C, 10-1 mm: + 50 max., 2 max. at 100 °C, EAN code: 7316574457281

SKF Authorised distributor logo
Brand SKF
Mfr Part No. LGWM 2/5
Acorn Code LGWM2/5-SKF
HS Code 2710 12 15 00
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 Netherlands (NL)

$202.15

− +

SKF LGWM 2 is a synthetic-mineral oil based grease using the latest complex calcium sulphonate thickener technology. It is suitable for applications subjected to high loads, wet environments and fluctuating temperatures.
Typical applications:
• Wind turbines main shafts
• Heavy duty off road applications
• Snow exposed applications
• Marine and offshore applications
- Spherical roller thrust bearing applications

Specification

Product Attributes
Manufacturer Product Code LGWM 2/5
Basic Product Description High load, wide temperature range grease, 5 kg can
Size (Per Unit) 5 Kg
UOM Each
Base Oil Viscosity cSt @ 40°C 80
Weight (Kg) 5
Dropping point > 300 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 280-310; 100000 strokes, 10-1 mm: + 30 max.
Roll stability ASTM D1831 50 hours at 80 °C, 10-1 mm: + 50 max.
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Oil separation DIN 51 817 7 days at 40 °C: 3 max. %
Copper corrosion DIN 51811 2 max. at 100 °C
Rolling bearing grease life ROF test, L50 life at 10000 r/min: > 1824 hrs at 110 °C
UN Code Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: < 1.5 mm; Weld load DIN 51350/4: > 4000 N
Thickener Complex calcium sulphonate
Base type Synthetic (PAO)/Mineral
Colour Brown
Container Can
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -40°C
Ex-2 Features 2 60 strokes, 10-1 mm: 280-310; 100000 strokes, 10-1 mm: + 30 max.
Ex-3 Features 3 50 hours at 80 °C, 10-1 mm: + 50 max.
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Series 7 days at 40 °C: 3 max. %
Model 2 max. at 100 °C
In-3 Internal Features 3 ROF test, L50 life at 10000 r/min: > 1824 hrs at 110 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: < 1.5 mm; Weld load DIN 51350/4: > 4000 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -40°C
Upper Operating Temperature +110°C
Basic Reference Grease
EAN code 7316574457281
