N217-E-XL-TVP2-C3, FAG, Cylindrical roller bearing, with cage, single row, non-locating bearing
Metric, Bearing, Polymer cage, C3 Clearance, EAN code: 4012801023535
Brand | FAG |
---|---|
Mfr Part No. | N217-E-XL-TVP2-C3 |
Metric, Bearing, Polymer cage, C3 Clearance, EAN code: 7316570550825
Brand | SKF |
---|---|
Mfr Part No. | N 217 ECP/C3 |
Acorn Code | N217ECP/C3-SKF |
HS Code | 8482 50 00 90 |
COO | Germany (DE) |

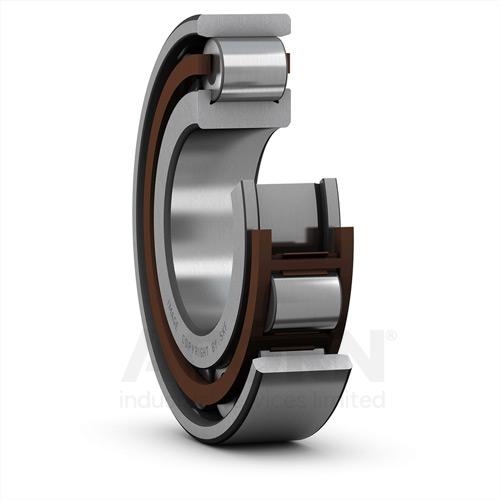

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
• High radial load carrying capacity
• Low friction
• Long service life
• Accommodate axial displacement in both directions
• Separable design
Manufacturer Product Code | N 217 ECP/C3 |
---|---|
Basic Product Description | Cylindrical roller bearing. Fixed inner ring - Sliding outer ring |
Measurement | Metric |
UOM | Each |
id (mm) | 85 |
od (mm) | 150 |
Width (mm) | 28 |
Weight (Kg) | 1.84 |
Bore Type | Cylindrical |
Clearance | C3 Clearance |
Cage design | Reinforced moulded polymer |
Cage material | Polymer cage |
Bearing Material | Bearing steel |
Basic dynamic load rating | 190 kN |
Basic static load rating | 200 kN |
Limiting speed | 5300 r/min |
Reference speed | 4800 r/min |
EAN code | 7316570550825 |
Metric, Bearing, Polymer cage, C3 Clearance, EAN code: 4012801023535
Brand | FAG |
---|---|
Mfr Part No. | N217-E-XL-TVP2-C3 |
Metric, Bearing, Polymer cage, C3 Clearance, EAN code: 9008745732942
Brand | NKE |
---|---|
Mfr Part No. | N217-E-TVP-C3 |
