N322-E-XL-M1, FAG, Cylindrical roller bearing, with cage, single row, non-locating bearing
Metric, Bearing, Brass cage, Normal Clearance (Cn), EAN code: 4012801404273
$1,396.12
| Brand | FAG |
|---|---|
| Mfr Part No. | N322-E-XL-M1 |
Metric, Bearing, Brass cage, Normal Clearance (Cn), EAN code: 7316577042422
| Brand | SKF |
|---|---|
| Mfr Part No. | N 322 ECM |
| Acorn Code | N322ECM-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

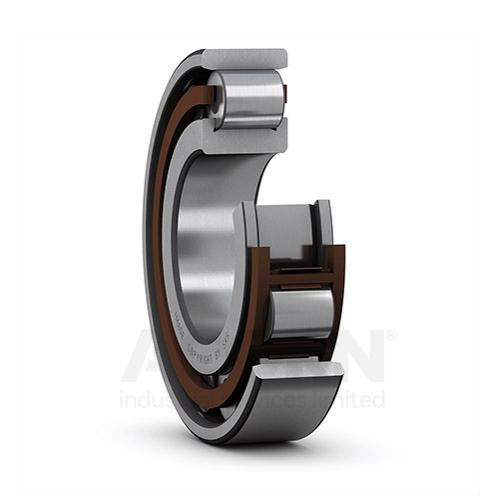

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
• High radial load carrying capacity
• Low friction
• Long service life
• Accommodate axial displacement in both directions
• Separable design
| Manufacturer Product Code | N 322 ECM |
|---|---|
| Basic Product Description | Cylindrical roller bearing. Fixed inner ring - Sliding outer ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 110 |
| od (mm) | 240 |
| Width (mm) | 50 |
| Weight (Kg) | 11.4 |
| Bore Type | Cylindrical |
| Clearance | Normal Clearance (Cn) |
| Cage design | Machined brass |
| Cage material | Brass cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 530 kN |
| Basic static load rating | 540 kN |
| Limiting speed | 3400 r/min |
| Reference speed | 3000 r/min |
| EAN code | 7316577042422 |
Metric, Bearing, Brass cage, Normal Clearance (Cn), EAN code: 4012801404273
| Brand | FAG |
|---|---|
| Mfr Part No. | N322-E-XL-M1 |
Metric, Bearing, Brass cage, Normal Clearance (Cn)
| Brand | Timken |
|---|---|
| Mfr Part No. | N322 EMB |
Metric, Bearing, Brass cage, Normal Clearance (Cn), EAN code: 29176002977
| Brand | NSK |
|---|---|
| Mfr Part No. | N322M |
Metric, Bearing, Brass cage, Normal Clearance (Cn), EAN code: 9008745749414
| Brand | NKE |
|---|---|
| Mfr Part No. | N322-E-M |
Metric, Bearing, Brass cage, C3 Clearance, EAN code: 7316577041470
| Brand | SKF |
|---|---|
| Mfr Part No. | N 322 ECM/C3 |
