Metric, Bearing, Steel cage, EAN code: 07316570604542
| Brand | SKF |
|---|---|
| Mfr Part No. | NAO 12X24X13 |
| Acorn Code | NAO12X24X13-SKF |
| HS Code | 8482 40 00 00 |
| COO | Germany (DE) |

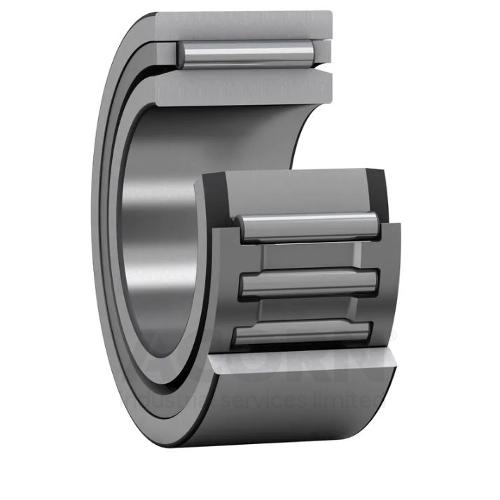

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. Bearings without flanges on the outer ring are separable, i.e. the outer ring and the needle roller and cage assembly can be mounted separately.
• High radial load carrying capacity
• High stiffness
• Low cross-sectional height
• Accommodate axial displacement in both directions
• Separable design
| Manufacturer Product Code | NAO 12X24X13 |
|---|---|
| Basic Product Description | Single row needle roller bearing with machined rings, without flanges |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 12 |
| od (mm) | 24 |
| Width (mm) | 13 |
| Weight (Kg) | 0.03 |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 8.58 kN |
| Basic static load rating | 12 kN |
| Limiting speed | 26000 r/min |
| Reference speed | 24000 r/min |
| EAN code | 07316570604542 |
