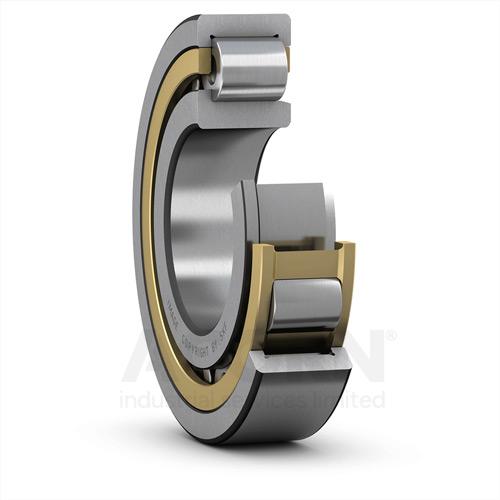

NJ 2326 ECML/C4VQ015, SKF, Cylindrical roller bearing. Fixed outer ring - Inner ring slides one way

Metric, Bearing, Bearing steel, Inner ring with crowned raceway, C4 Clearance, EAN code: 07316574559428

Brand SKF
Mfr Part No. NJ 2326 ECML/C4VQ015
Acorn Code NJ2326ECML/C4VQ015-SKF
HS Code 8482 50 00 90
COO Germany (DE)

Online price in $ not currently available


Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

• High radial load carrying capacity
• Low friction
• Long service life
• Locate the shaft axially in one direction
• Separable design


Product Attributes
Manufacturer Product Code NJ 2326 ECML/C4VQ015
Basic Product Description Cylindrical roller bearing. Fixed outer ring - Inner ring slides one way
Measurement Metric
UOM Each
id (mm) 130
od (mm) 280
Width (mm) 93
Weight (Kg) 29.6
Bore Type Cylindrical
Clearance C4 Clearance
Cage design Machined brass
Contact Angle Inner ring with crowned raceway
Cage material Brass cage
Bearing Material Bearing steel
Basic dynamic load rating 1059.999 kN
Basic static load rating 1250
Limiting speed 4500
Reference speed 2400
EAN code 07316574559428
