Metric, Bearing, Bearing steel, C4 Clearance, EAN code: 07316571150130
| Brand | SKF |
|---|---|
| Mfr Part No. | NU 1018 M/C4VA3091 |
| Acorn Code | NU1018M/C4VA3091-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |
NU design bearings
- have two integral flanges on the outer ring and no flanges on the inner ring
- can accommodate axial displacement of the shaft relative to the housing in both directions
- can be used together with an appropriate angle ring to stabilize the bearing in the axial direction (Appropriate angle rings)
| Manufacturer Product Code | NU 1018 M/C4VA3091 |
|---|---|

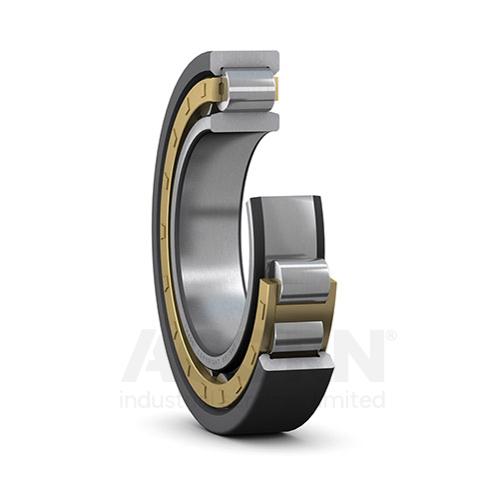

| Basic Product Description | Cylindrical roller bearing. Fixed outer ring - Inner ring slides in both directions |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 90 |
| od (mm) | 140 |
| Width (mm) | 24 |
| Weight (Kg) | 1.4 |
| Bore Type | Cylindrical |
| Clearance | C4 Clearance |
| Cage design | Machined brass |
| Other Variations | VA3091 = Bearing for railway vehicle traction motors |
| Cage material | Brass cage |
| Bearing Material | Bearing steel |
| EAN code | 07316571150130 |
