Metric, Bearing, Brass cage, Cylindrical, C4 Clearance, EAN code: 7316570373462
| Brand | SKF |
|---|---|
| Mfr Part No. | NUP 218 ECM/C4 |
| Acorn Code | NUP218ECM/C4-SKF |
| HS Code | 8482 50 00 90 |
| COO | Germany (DE) |

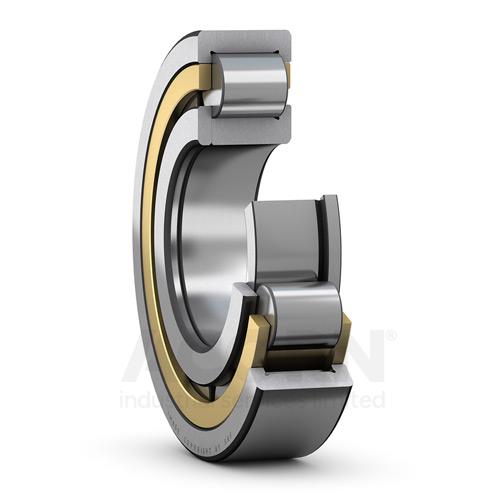

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
• High radial load carrying capacity
• Low friction
• Long service life
• Locate the shaft axially in both directions
• Separable design
| Manufacturer Product Code | NUP 218 ECM/C4 |
|---|---|
| Basic Product Description | Single row cylindrical roller bearing, NUP design |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 90 |
| od (mm) | 160 |
| Width (mm) | 30 |
| Weight (Kg) | 2.4 |
| Bore Type | Cylindrical |
| Clearance | C4 Clearance |
| Cage design | Machined brass |
| Cage material | Brass cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 208 kN |
| Basic static load rating | 220 kN |
| Limiting speed | 5000 r/min |
| Reference speed | 4500 r/min |
| EAN-Code | 7316570373462 |
