Seal, Metal-cased, Nitrile rubber (NBR), Double lip, 12, 20, 5, 5
| Brand | SKF |
|---|---|
| Mfr Part No. | 12X20X5CRSA1R |
| Acorn Code | 12X20X5CRSA1R-SKF |
| HS Code | 8484 90 00 90 |
| COO | XXX |

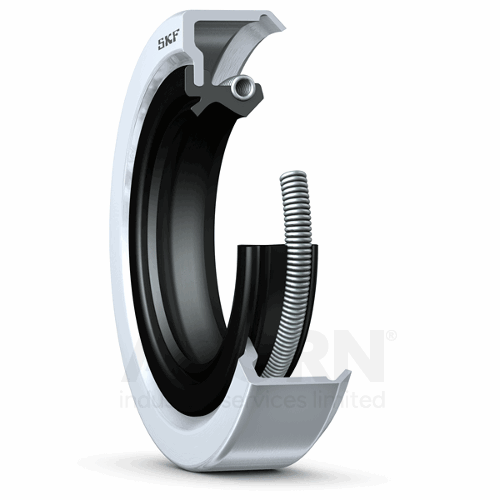

CRSA1 seals are designed with a metal case and a conventional spring-loaded sealing lip. Some of them have a sealant on the outside diameter to compensate for imperfections in the housing bore.
| Manufacturer Product Code | 12X20X5CRSA1R |
|---|---|
| Basic Product Description | Seal with a single steel case, a conventional sealing lip, a carbon steel garter spring and an auxiliary, contacting lip. |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 12 |
| od (mm) | 20 |
| Width (mm) | 5 |
| Length (mm) | 12 |
| Radious | 20 |
| Seal type | Double lip |
| Operating temperature min | -40 °C |
| Operating temperature max | 100 °C |
| Outer Material | Metal-cased |
| Lip material | Nitrile rubber (NBR) |
