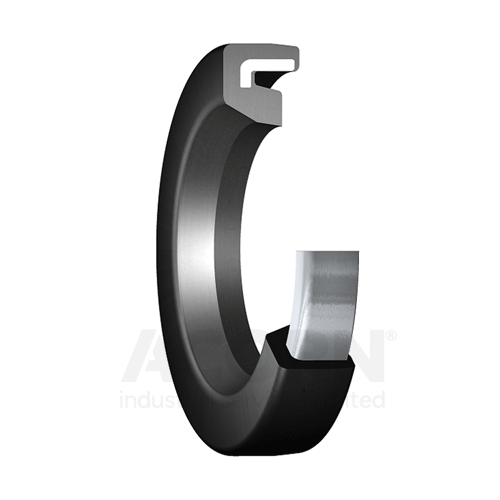

Seal, Metal-cased, Nitrile rubber (NBR), Single lip, 50, 62, 5, 5
| Brand | SKF |
|---|---|
| Mfr Part No. | 50X62X5HM4R |
| Acorn Code | 50X62X5HM4R-SKF |
| HS Code | 8484 90 00 90 |
| COO | Taiwan, Province Of China (TW) |
Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
| Manufacturer Product Code | 50X62X5HM4R |
|---|---|
| Basic Product Description | Radial shaft seal |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| od (mm) | 62 |
| Width (mm) | 5 |
| Length (mm) | 50 |
| Radious | 62 |
| Seal type | Single lip |
| Operating temperature min | -40 °C |
| Operating temperature max | 100 °C |
| Outer Material | Metal-cased |
| Lip material | Nitrile rubber (NBR) |
