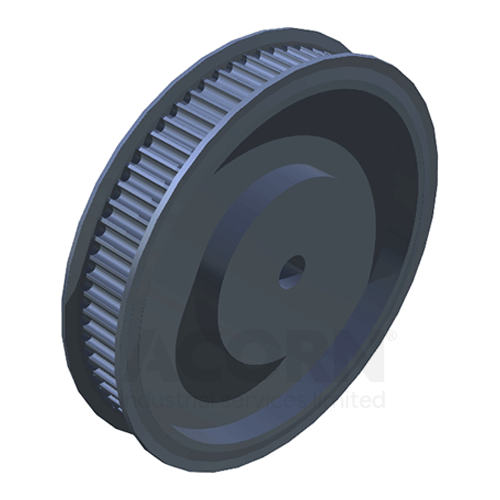

30-5M-15-PB, Neutral, Timing Pulleys in HTD Tooth Profile
Metric, Pilot bore timing pulleys, 30, Pilot bore, 6
$3.33
In stock
- SALES: +44 (0)1709 789 933
Metric, Pilot bore timing pulleys, 30, Pilot bore, 6, EAN code: 07316572606131
HiTD (high torque drive) pulleys are heavy duty pulleys, designed to be used with HiTD belts in synchronous belt drives.
The pulleys are prepared with a pilot bore, which can be machined to the desired dimensions before mounting.
• Manufactured according to international standards
• Phosphate-coated for corrosion resistance
• Tooth profiles interchangeable with ISO/DIN and RMA standards
• Superior quality can enhance belt life and reduce total cost of ownership of the machinery
| Manufacturer Product Code | PHP 30-5M-15RSB |
|---|---|
| Basic Product Description | HiTD pulley, pilot bore |
| Measurement | Metric |
| UOM | Each |
| Pitch Diameter (mm) | 47.75 |
| Outer Diameter (mm) | 46.6 |
| Width (mm) | 28 |
| To suit a 9mm wide belt (mm) | 15 |
| Hub diameter | 35 |
| Weight (Kg) | 0.284 |
| No. of Teeth | 30 |
| Bore Type | Pilot bore |
| Max. bore (mm) | 24 |
| Min. bore (mm) | 6 |
| Variance | 1F |
| Section | 5M |
| Material | Cast Iron |
| EAN | 07316572606131 |
