Timing Pulleys

Timing pulleys are mechanical components used in conjunction with timing belts to transmit power and synchronise the movement of different parts of a machine. They have teeth that mesh with the teeth on the timing belt, ensuring precise and slip-free power transmission. Timing pulleys are commonly used in applications where accurate timing and synchronisation are critical.

Register for an account
Read more

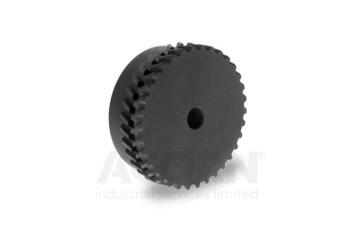

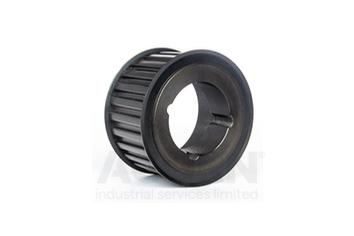

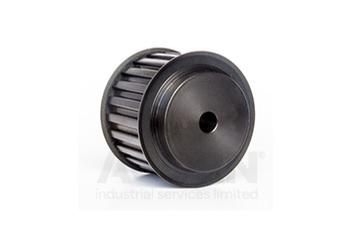

Types of timing pulleys:

Our timing pulleys

Reasons to buy from us

How do timing pulleys work?

Timing pulleys are grooved wheels which are used in conjunction with timing belts to transmit power and torque across an application.

How do timing pulleys work?

The grooves in the pulley interlock with the teeth of the timing belt to avoid slippage. The tension of the belt, combined with the friction of the meshed grooves and teeth cause the pulley and shaft to rotate together.

Where are timing pulleys used?

Every application which uses a timing belt will also need timing pulleys. These pulleys are commonly found in vehicles, printers and manufacturing equipment.

Latest insight articles

more insight articles

Timing Pulleys FAQs

How do I select the right timing pulley for my application?

When selecting a timing pulley, consider the following criteria:

  • Tooth Profile: Ensure the pulley matches the tooth profile of the timing belt (e.g., HTD, GT2, T5).
  • Number of Teeth: Choose the appropriate number of teeth to achieve the desired speed ratio and torque transmission.
  • Bore Size: Match the bore size of the pulley to the shaft diameter for proper fit.
  • Material: Select a material that meets the strength, weight, and environmental requirements of the application.
  • Flanges: Consider whether flanged pulleys are needed to prevent belt misalignment.

How do I maintain timing pulleys?

To maintain timing pulleys:

  • Regularly inspect pulleys for signs of wear, damage, or misalignment.
  • Ensure proper tensioning of the timing belt to maintain performance and prevent slippage.
  • Clean pulleys and belts to remove dirt and debris that can cause wear.
  • Replace worn or damaged pulleys as part of routine maintenance to prevent unexpected failures and downtime
