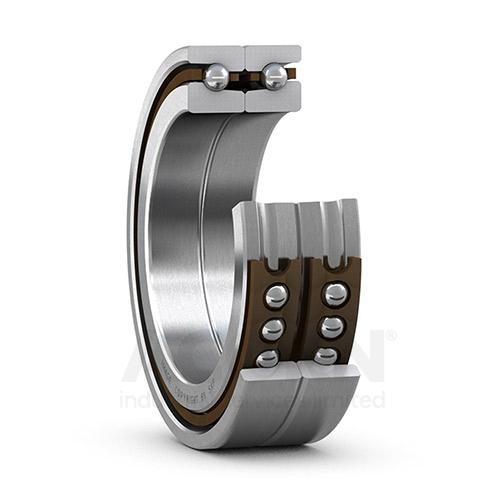

BTM 100 BTN9/P4CDBA, SKF, Precision Bearing, Double Direction Angular Contact Thrust Ball Bearing for Screw Drives

Bearing, Bearing steel, Open (no seal)

Brand	SKF
Mfr Part No.	BTM 100 BTN9/P4CDBA
Acorn Code	BTM100BTN9/P4CDBA-SKF
HS Code	8482 10 90 30
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Italy (IT)

Price in $ to be confirmed

In stock

These double direction angular contact thrust ball bearings consist of two non-separable single row angular contact ball bearings arranged back-to-back. They accommodate axial loads in both directions and offer maximum speed capability. Compared to bearings in the basic design, BTW series, they have a 25% lower bearing height.

Specification

Product Attributes
Manufacturer Product Code	BTM 100 BTN9/P4CDBA
Basic Product Description	Double Direction Angular Contact Thrust Ball Bearing for Screw Drives
UOM	Each
id (mm)	100
od (mm)	150
Width (mm)	45
Weight (Kg)	2.647
Seals/Shields	Open (no seal)
Contact Angle	60° Contact angle
Cage material	Polymer cage
Bearing Material	Bearing steel
EAN-Code	7316576743405

BTM 100 BTN9/P4CDBA, SKF, Precision Bearing, Double Direction Angular Contact Thrust Ball Bearing for Screw Drives
