BTW 120 CTN9/VQ496, SKF, Precision Bearing, Double direction angular contact thrust ball bearing, super-precision, basic design

Metric, Bearing, Bearing steel, Open (no seal)

Brand	SKF
Mfr Part No.	BTW 120 CTN9/VQ496
Acorn Code	BTW120CTN9/VQ496-SKF
HS Code	8482 10 90 30
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Italy (IT)

Request a price

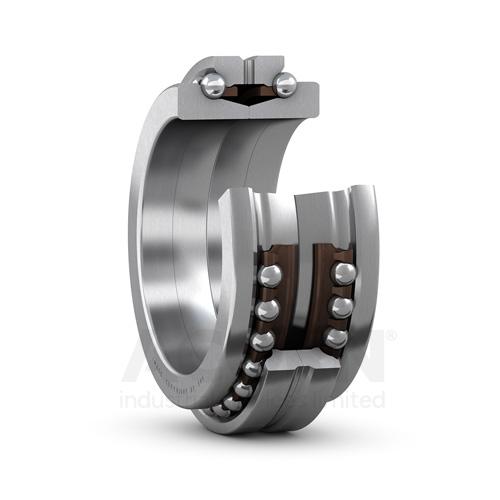

These double direction angular contact thrust ball bearings consist of two single row angular contact thrust ball bearings, arranged back-to-back. They accommodate high axial loads in both directions and provide a high degree of system rigidity.

Specification

Product Attributes
Manufacturer Product Code	BTW 120 CTN9/VQ496
Basic Product Description	Double direction angular contact thrust ball bearing, super-precision, basic design
Measurement	Metric
UOM	Each
id (mm)	120
od (mm)	180
Width (mm)	72
Weight (Kg)	5.051
Seals/Shields	Open (no seal)
Contact Angle	60° Contact angle
Cage material	Polymer cage
Bearing Material	Bearing steel
EAN-Code	7316576092749

BTW 120 CTN9/VQ496, SKF, Precision Bearing, Double direction angular contact thrust ball bearing, super-precision, basic design
