AC = 25° Contact angle, P4A, Measuring load, class A, Non-metallic, Seal on both sides
| Brand | SKF |
|---|---|
| Mfr Part No. | S7008 ACBGA/HCP4A |
| Acorn Code | S7008ACBGA/HCP4A-SKF |
| HS Code | 8482 10 90 30 |
| COO | XXX |

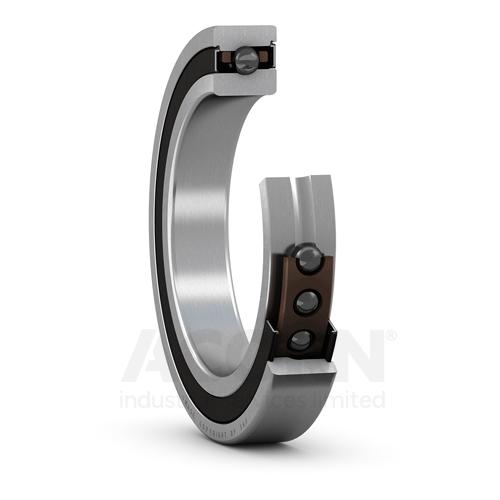

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
• 15° or 25° contact angle
• Very high running accuracy
• Very high load carrying capacity
• Universally matchable
• Non-contact seals on both sides
| Manufacturer Product Code | S7008 ACBGA/HCP4A |
|---|---|
| Basic Product Description | Single Row Angular Contact Ball Bearing |
| UOM | Single |
| id (mm) | 40 |
| od (mm) | 68 |
| Width (mm) | 15 |
| Weight (Kg) | 0.214 |
| Seals/Shields | Seal on both sides |
| Contact Angle | AC = 25° Contact angle |
| Accuracy | P4A |
| Preload | Measuring load, class A |
| Bearing Arrangement | Single Bearing |
| Ring type | One-piece inner and outer rings |
| Bearing Set | Universally Matched |
| Cage material | Non-metallic |
| Bearing Material | Hybrid |
| Basic dynamic load rating | 6.89 kN |
| Basic static load rating | 5.3 |
| EAN-Code | 7316574504602 |
