Pump, G 3/4, EAN code: 7316574959716

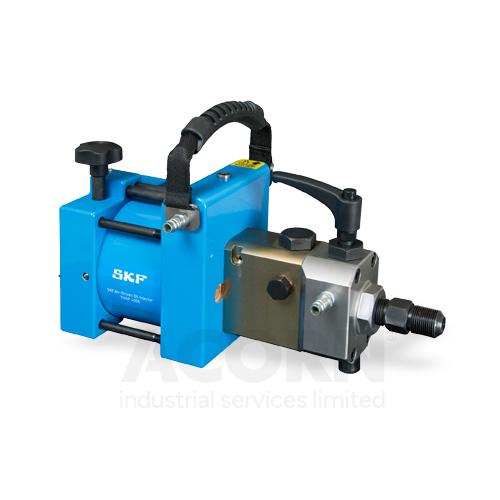

The THAP 030E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and simlar applications for pressures upto 30 MPa/4,350 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 030E.
| Manufacturer Product Code | THAP 030E |
|---|---|
| Basic Product Description | Air-driven hydraulic pump for pressures upto 30 MPa/4,350 psi |
| UOM | Each |
| Width (mm) | 171 |
| Length (mm) | 350 |
| Height (mm) | 202 |
| Weight (Kg) | 11.5 |
| Thead | G 3/4 |
| Operating air pressure | 7 bar |
| Volume/stroke | 10 cm³ |
| MPA | 30 |
| PSI | 4350 |
| Container Capacity | Separate Container |
| Product type | Pump |
| EAN code | 7316574959716 |
