Metric, Steel/PTFE sintered bronze, Shield on both sides, Maintenance-free
| Brand | SKF |
|---|---|
| Mfr Part No. | GE100CSZZ |
| Acorn Code | GE100CSZZ-SKF |
| HS Code | 8482 30 00 00 |
| COO | XXX |

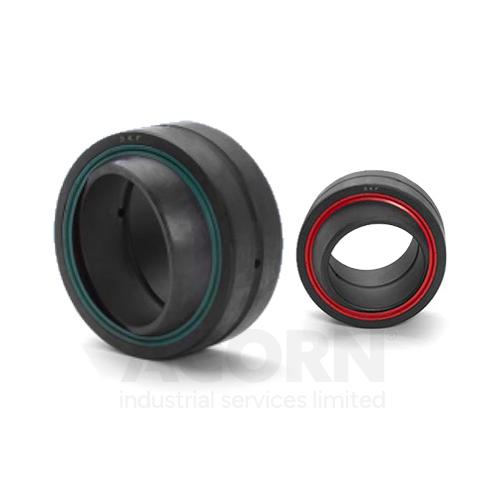

These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
• Designed for radial and combined radial and axial loads
• Long service life and maintenance-free
• Suitable for heavy, constant direction loads
• Low coefficient of friction
• High operating temperatures
• High sliding velocities and small operating clearances
| ManufacturerProductCode | GE100CSZZ |
|---|---|
| Basic Product Description | Radial spherical plain bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 100 |
| od (mm) | 150 |
| Width (mm) | 70 |
| Weight (Kg) | 4.3 |
| Lubrication | Maintenance-free |
| Seals | Shield on both sides |
| Relubrication feature | Without |
| Tolerance group | Normal (PN) |
| Sliding material, contacting surfaces | Steel/PTFE sintered bronze |
| Material, inner ring | Bearing steel |
| Material, outer ring | Deep-drawing steel |
