GEG 125 ES, SKF, Radial spherical plain bearing, steel/steel, cylindrical extensions on inner ring, open

Metric, Steel/Steel, Without seals, Requiring maintenance, EAN code: 07316577107381

SKF Authorised distributor logo
Brand SKF
Mfr Part No. GEG 125 ES
Acorn Code GEG125ES-SKF
HS Code 8482 99 00 90
COO Germany (DE)

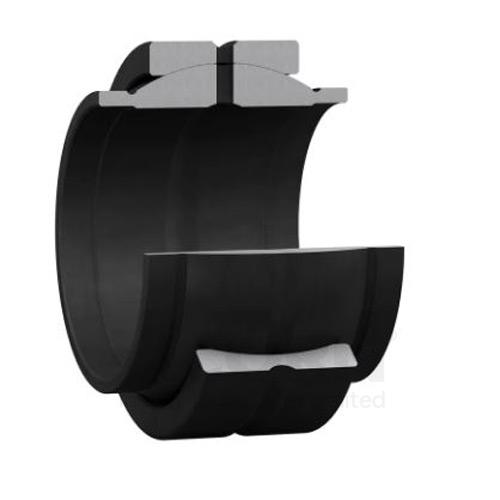

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination and an extended inner ring. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

• Designed for radial and combined radial and axial loads
• Suitable for heavy static, alternating or impact loads
• Extended inner ring can save spacer rings

Specification

Product Attributes
ManufacturerProductCode GEG 125 ES
Basic Product Description Radial spherical plain bearing, steel/steel, cylindrical extensions on inner ring, open
Measurement Metric
UOM Each
id (mm) 125
od (mm) 180
Width (mm) 125
Weight (Kg) 8.02
Lubrication Requiring maintenance
Seals Without seals
Relubrication feature With
Tolerance group Normal (PN)
Sliding material, contacting surfaces Steel/Steel
Material, inner ring Bearing steel
Material, outer ring Bearing steel
Basic dynamic load rating 950 kN
Basic static load rating 4750 kN
EAN-Code 07316577107381
