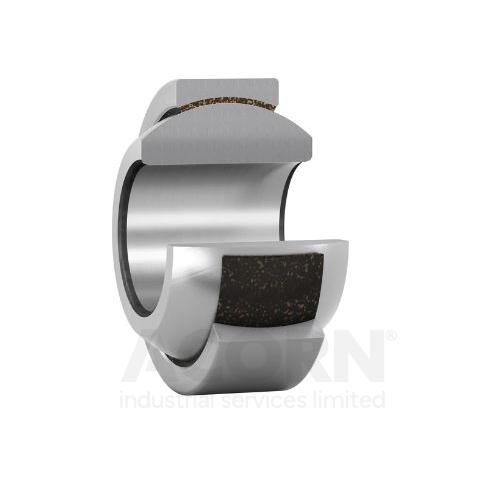

SKF - GEH 10 C - Bearing - Radial spherical plain bearing, maintenance-free, PTFE composite, inner chromium coating, open

GEH 10 C, SKF, Radial spherical plain bearing, maintenance-free, PTFE composite, inner chromium coating, open

Metric, Steel/PTFE sintered bronze, Without seals, Maintenance-free, EAN code: 07316577003171

Brand	SKF
Mfr Part No.	GEH 10 C
Acorn Code	GEH10C-SKF
HS Code	8482 99 00 90
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Germany (DE)

These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.

• Designed for radial and combined radial and axial loads
• Long service life and maintenance-free
• Suitable for heavy, constant direction loads
• Low coefficient of friction
• High operating temperatures
• High sliding velocities and small operating clearances

Specification

Product Attributes
ManufacturerProductCode	GEH 10 C
Basic Product Description	Radial spherical plain bearing, maintenance-free, PTFE composite, inner chromium coating, open
Measurement	Metric
UOM	Each
id (mm)	10
od (mm)	22
Width (mm)	12
Weight (Kg)	0.019
Lubrication	Maintenance-free
Seals	Without seals
Relubrication feature	Without
Tolerance group	Normal (PN)
Sliding material, contacting surfaces	Steel/PTFE sintered bronze
Material, inner ring	Bearing steel
Material, outer ring	Deep-drawing steel
Basic dynamic load rating	11.4 kN
Basic static load rating	28.5 kN
EAN-Code	07316577003171
