Metric, Rod end, Steel/PTFE Fabric, Female connection, Right-hand thread, M42 x 3, Requires maintenance, EAN code: 07316572050804

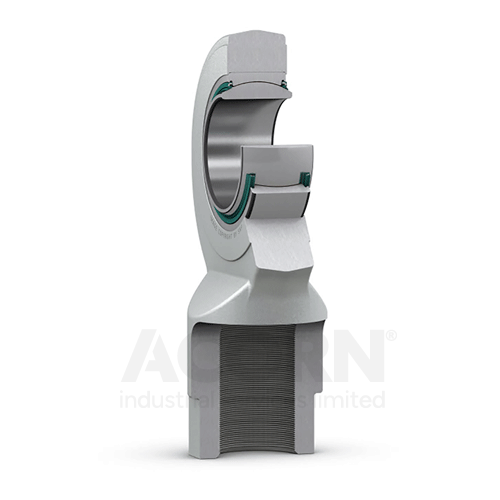

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free.
• Long service life
• Maintenance-free
• Suitable for very heavy, constant direction loads
• Low coefficient of friction
• Simple and ready-to-mount
| Manufacturer Product Code | SIA 45 TXE-2LS |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 45 |
| od (mm) | 145 |
| Width (mm) | 104 |
| Thread (mm) | M42 x 3 |
| Width, bearing inner ring (mm) | 32 |
| Width, housing eye (mm) | 28 |
| Weight (Kg) | 2.9 |
| Lubrication | Requires maintenance |
| Features | Female connection |
| Thread (L/R) | Right-hand thread |
| Tilt angle | Tilt angle: 7° |
| Sealing solution | Triple-lip seals |
| Housing material | Heat treatable steel C45V, zinc coated and chromatized |
| Bearing Material | Steel/PTFE Fabric |
| Basic dynamic load rating | 360 kN |
| Basic static load rating | 224 kN |
| EAN code | 07316572050804 |
