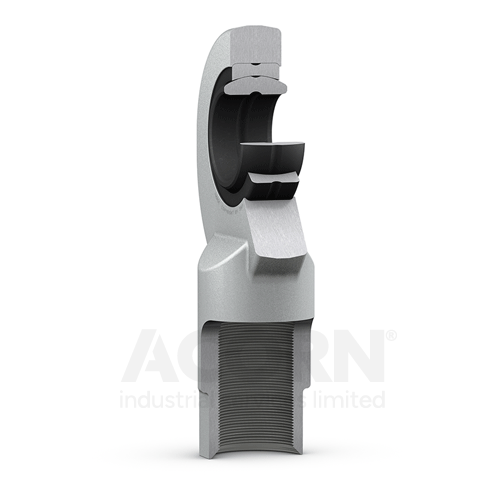

FIL10 D, Neutral, Rod end
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M10 x 1.5
$3.03
In stock
- SALES: +44 (0)1709 789 933
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M10, Requires maintenance, EAN code: 07316577003539
Suitable for heavy static or alternating loads, shock loads. With an open bearing (without seals),no relubrication facilities
| Manufacturer Product Code | SIL 10 E |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 10 |
| od (mm) | 43 |
| Width (mm) | 30 |
| Thread (mm) | M10 |
| Width, bearing inner ring (mm) | 9 |
| Width, housing eye (mm) | 7.5 |
| Weight (Kg) | 0.06 |
| Lubrication | Requires maintenance |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Tilt angle | Tilt angle: 12° |
| Sealing solution | Without seals |
| Housing material | Steel |
| Bearing Material | Steel/Steel |
| Basic dynamic load rating | 8.15 kN |
| Basic static load rating | 19 kN |
| EAN code | 07316577003539 |
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M10 x 1.5
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, Requires maintenance, EAN code: 4012802526301
This item is not currently available from our stocks.
Despatch date information is on request.
