PR 35 U, Neutral, Rod End with rectangular section welding shank
Metric, Rod end, Steel/Steel
$17.37
In stock
- SALES: +44 (0)1709 789 933
Metric, Rod end, Steel/Steel, Female connection, Right-hand thread, M28 x 1.5, Requires maintenance, EAN code: 07316577003652

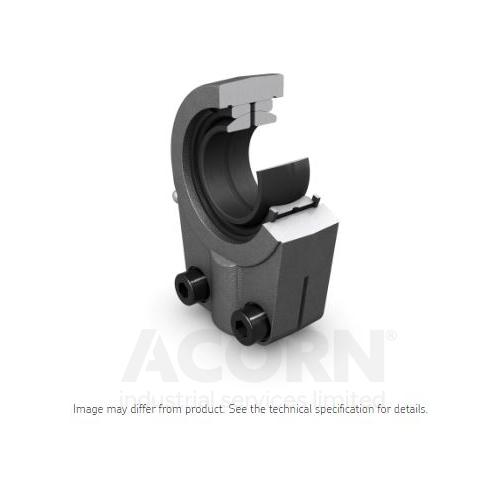

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft.
• Easy to relubricate
• Suitable for heavy static, alternating or impact loads
• Simple and ready-to-mount
• Slotted shank with clamping screws
• Suitable for hydraulic cylinders
• Bearing can be exchanged
| Manufacturer Product Code | SIR 35 ES |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread with clamping screws |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 35 |
| od (mm) | 70 |
| Width (mm) | 80 |
| Thread (mm) | M28 x 1.5 |
| Width, bearing inner ring (mm) | 25 |
| Width, housing eye (mm) | 30.5 |
| Weight (Kg) | 1.2 |
| Lubrication | Requires maintenance |
| Features | Female connection |
| Thread (L/R) | Right-hand thread |
| Sealing solution | Without seals |
| Housing material | Steel |
| Bearing Material | Steel/Steel |
| Basic dynamic load rating | 80 kN |
| Basic static load rating | 118 kN |
| EAN code | 07316577003652 |
Metric, Rod end, Steel/Steel
Metric, Rod end, Steel/Steel, Female connection, Right-hand thread, Requires maintenance, EAN code: 4012802523751
This item is not currently available from our stocks.
Despatch date information is on request.
