FE12 D, Neutral, Rod end
Metric, Rod end, Steel/Steel, Male connection, Right-hand thread, Lubrication Hole
$5.63
In stock
- SALES: +44 (0)1709 789 933
Metric, Rod end, Steel/Steel, Male connection, Right-hand thread, Requiring maintenance, EAN code: 07316577002549

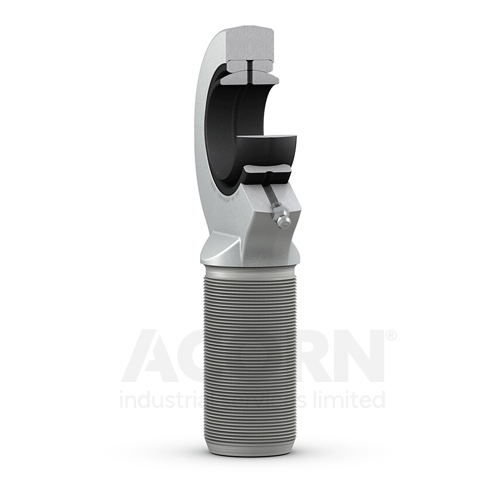

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated only from the side.
• Suitable for heavy static, alternating or impact loads
• Simple and ready-to-mount
| Manufacturer Product Code | SA 12 E |
|---|---|
| Basic Product Description | Rod end |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring | 12 |
| Centre height, housing (from end of shank) | 54 |
| Outside diameter, housing eye | 35 |
| Thread (mm) | M 12 |
| Weight (Kg) | 0.08 |
| Lubrication | Requiring maintenance |
| Sealing solution | Without seals |
| 4 | Male connection |
| Thread (L/R) | Right-hand thread |
| Tile Angle | Tilt angle: 10° |
| Bearing Material / Liner | Steel/Steel |
| Housing Material | Steel |
| Basic dynamic load rating | 10.8 kN |
| Basic static load rating | 24.5 kN |
| EAN code | 07316577002549 |
Metric, Rod end, Steel/Steel, Male connection, Right-hand thread, Lubrication Hole
Metric, Rod end, Steel/Steel, Male connection, Right-hand thread, Requiring maintenance, EAN code: 4012802524925
This item is not currently available from our stocks.
Despatch date information is on request.
