Metric, Rod end, Steel/PTFE Sintered bronze, Male connection, Left-hand thread, Maintenance free, EAN code: 07316577104649
| Brand | SKF |
|---|---|
| Mfr Part No. | SAL 10 C |
| Acorn Code | SAL10C-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |

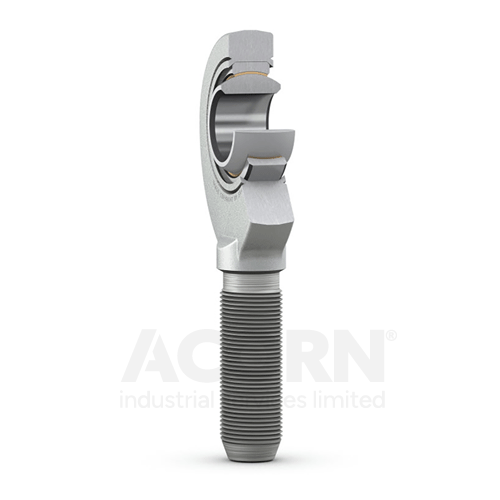

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze sliding contact surface combination. The bearing is maintenance-free.
• Long service life
• Maintenance-free
• Suitable for heavy, constant direction loads
• Low coefficient of friction
• Simple and ready-to-mount
| Manufacturer Product Code | SAL 10 C |
|---|---|
| Basic Product Description | Rod end |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring | 10 |
| Centre height, housing (from end of shank) | 48 |
| Outside diameter, housing eye | 30 |
| Thread (mm) | M 10 |
| Weight (Kg) | 0.04 |
| Lubrication | Maintenance free |
| Sealing solution | Without seals |
| 4 | Male connection |
| Thread (L/R) | Left-hand thread |
| Tile Angle | Tilt angle: 12° |
| Bearing Material / Liner | Steel/PTFE Sintered bronze |
| Housing Material | Steel |
| Basic dynamic load rating | 8.65 kN |
| Basic static load rating | 18.3 kN |
| EAN code | 07316577104649 |
Metric, Rod end, Steel/PTFE Fabric, Male connection, Left-hand thread, Maintenance free, EAN code: 4012802524604
| Brand | INA |
|---|---|
| Mfr Part No. | GAL10-UK |
