TKSA 11, SKF, Innovative shaft alignment tool

EAN code: 7316576051630

Brand SKF
Mfr Part No. TKSA 11
Acorn Code TKSA11-SKF
HS Code 9031 80 20
COO Germany (DE)



The SKF TKSA 11 is an innovative shaft alignment tool that uses smartphones and tablets and intuitively guides the user through the shaft alignment process.. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument is especially suitable for alignment learners and compact applications. The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.

• Live view of the instrument and motor position makes the measurement and horizontal alignment intuitive and easy
• The TKSA 11 app offers a fully functional demonstration mode allowing the complete alignment process to be experienced without the need to purchase the TKSA 11
• The TKSA 11 is designed to give a fast return on its investment and is also affordable for almost every budget
• Mobile devices allow high resolution graphics, intuitive usage, automatic software updates and display unit choice
• By using inductive proximity sensors, the measurement is no longer affected by bright sunlight, the influence of backlash is reduced and the instrument becomes more robust. All enabling the TKSA 11 to deliver accurate and reliable shaft alignments
• Automatic alignment reports give a complete overview of the alignment process and results. Reports can easily be shared via email or cloud services

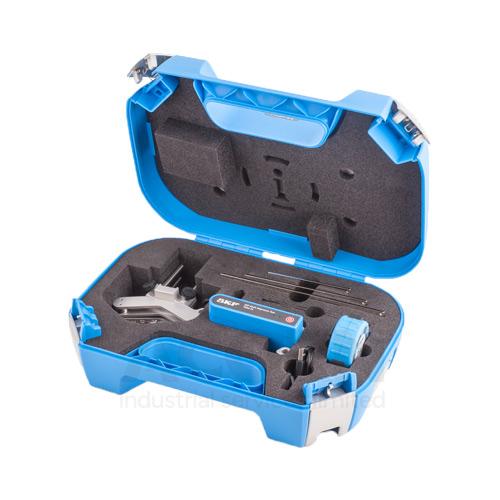

• The TKSA 11 is supplied in a sturdy SKF carrying case


Product Attributes
Manufacturer Product Code TKSA 11
Basic Product Description Innovative shaft alignment tool
UOM Each
Weight (Kg) 2.1
User Interface Phone, tablet (iOS & Android)
Wireless measuring heads Yes
System measuring distance 0 to 185 mm between brackets mm
Minimal Shaft Rotation 180°
Camera Yes
Machine Library No
QR Code Recognition No
Machine View Fixed 2D view
Target Values No
Disturbance Compensation No
Supported alignment applications Horizontal shafts
Alignment accessories included Measuring unit; 3x reference bars (100, 150 and 200 mm); 2x shaft V-brackets with chains 480 mm and threaded rods 80 mm; Micro USB to USB charging cable; Measuring tape 2 m; Printed certificate of calibration and conformance; Printed quick start guide (EN); SKF carrying case mm
Measuring errors < 2% mm
Environmental protetction IP 54
Power adapter Charging via micro USB 2.0 port (5V); Micro USB to USB charging cable included; Compatible with standard 5V USB chargers (not included)
Calibration certificate Supplied with 2 years validity
EAN-Code 7316576051630
