TKSA 51, SKF, Comprehensive and intuitive shaft alignment tool

EAN code: 7316576798863

Brand SKF
Mfr Part No. TKSA 51
Acorn Code TKSA51-SKF
HS Code 8482 99 00 90
COO Germany (DE)



The TKSA 51 shaft alignment tool provides high measurement flexibility and performance suitable for entry-level to expert alignment jobs. Designed to work with the shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA 51 for a wide range of alignment applications, such as motors, drives, fans, pumps, gearboxes and more. The tool's mobile apps include tutorial videos to show operators how to perform accurate measurements.

• Measurement flexibility - The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments of applications with limited space.
• Automatic reports - Alignment reports are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen. These reports can be exported as PDF files and shared with other mobile apps.
• Comprehensive and compact - A range of included components, such as magnetic mounting brackets and extension rods and chains, increase the TKSA 51's versatility, yet it remains compact, lightweight and easy to carry.
• 3-D live view - This feature enables intuitive positioning of heads for quick alignment measurements and displays live when horizontal/vertical alignment correction is achieved. The app enables 3-D rotation of the virtual motor to correspond with the actual machine position.
• Disturbance compensation - Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances.

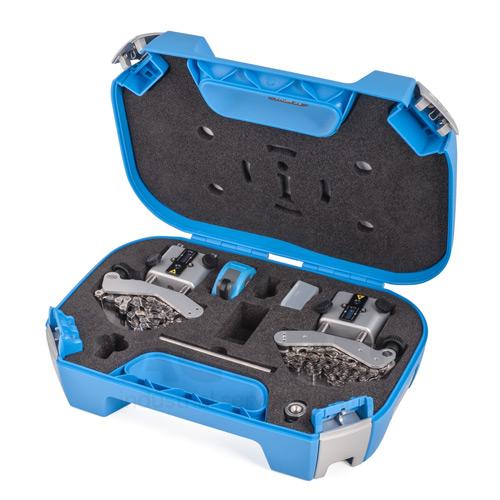

• The TKSA 51 is supplied in a sturdy SKF carrying case
• Extensive range of accessories is available.


Product Attributes
Manufacturer Product Code TKSA 51
Basic Product Description Comprehensive and intuitive shaft alignment tool
UOM Each
Weight (Kg) 2.9
User Interface Phone, tablet (iOS & Android)
Wireless measuring heads Yes
System measuring distance 0.07 to 5 m mm
Minimal Shaft Rotation 40°
Camera Yes
Machine Library Yes
QR Code Recognition Yes
Machine View Free 3D rotation
Target Values Yes
Disturbance Compensation Yes
Supported alignment applications Horizontal shafts; Vertical shafts; Soft foot
Alignment accessories included 2x measuring units (M&S); 2x shaft V-brackets with chains 480 mm, threaded rods 80 mm and 4x magnets each; 4x threaded extension rods 120 mm; 2x extension chains 980 mm; 2x micro USB to USB split charging cables; Measuring tape; Printed certificate of calibration and conformance; Printed quick start guide (EN); A4 sheet with 12 × QR code stickers; SKF carrying case mm
Measuring errors < 1% ±10 µm mm
Environmental protetction IP 54
Power adapter Charging via micro USB 2.0 port (5V); Micro USB to USB charging cable included; Compatible with standard 5V USB chargers (not included)
Calibration certificate Supplied with 2 years validity
EAN-Code 7316576798863
