Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 07316570770728
| Brand | SKF |
|---|---|
| Mfr Part No. | NUTR 3580 A |
| Acorn Code | NUTR3580A-SKF |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |

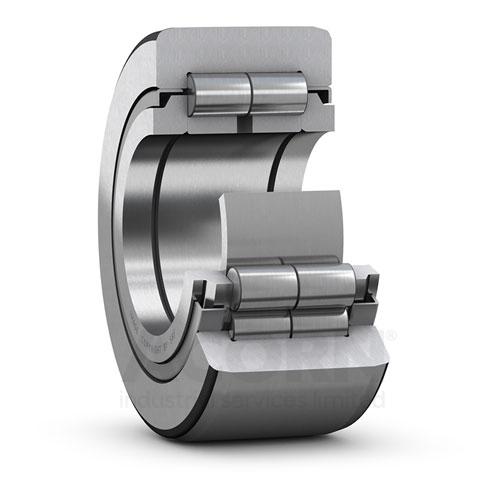

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with an improved crowned running surface. They are supplied sealed and ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication.
• High radial load carrying capacity
• Accommodate relatively heavy axial loads due to skew or tilting
• Long service life
• Ready to mount
• Sealed for increased reliability, with relubrication feature
| Manufacturer Product Code | NUTR 3580 A |
|---|---|
| Basic Product Description | Support rollers (Yoke-type track rollers) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 35 |
| od (mm) | 80 |
| Width (mm) | 29 |
| Number of Rows | 2 |
| Weight (Kg) | 0.836 |
| Sealing | Sealed on both sides |
| Sealing type | Labyrinth seal |
| Outer ring profile | Crowned outer ring |
| Clearance | Between C2 and CN |
| Cage design | Without cage |
| Cage material | Steel cage |
| Bearing Material | Bearing Steel |
| Basic static load rating | 51.2 kN |
| Limiting speed | 2000 r/min |
| Reference speed | 2000 |
| EAN-Code | 07316570770728 |
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 4012802415872
This item is not currently available from our stocks.
Despatch date information is on request.
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 9008745707261
