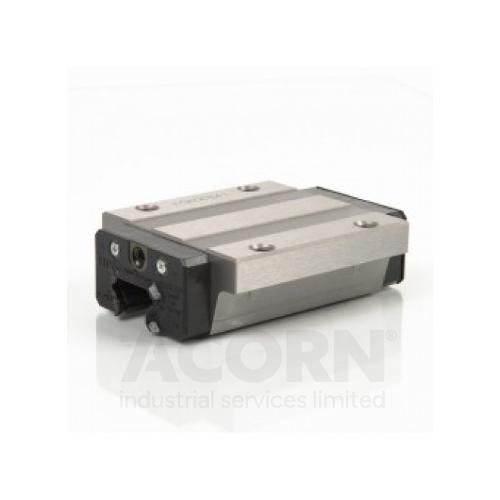

HSR65LA1SS(GK), THK, Linear Slide With Recirculating Ball Design

Linear slide, SS - With end seal + side seal + inner seal *

Brand	THK
Mfr Part No.	HSR65LA1SS(GK)
Acorn Code	HSR65LA1SS(GK)-THK
HS Code	8482 99 00 90
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Japan (JP)

$584.47

In stock

Add to basket

The LM block has the same cross-sectional shape as model HSR-A, but has a longer overall LM block length (L) and a greater rated load.

Specification

Product Attributes
Manufacturer Product Code	HSR65LA1SS(GK)
Basic Product Description	Linear Slide With Recirculating Ball Design
UOM	Each
Height (mm)	90
Width (mm)	170
length (mm)	245.5
Rating C Kn	249
Rating C0 kN	323
Weight (Kg)	8.6
Sealing	SS - With end seal + side seal + inner seal *
Option	LA
Temperature resistance	-20 to +80 °C

HSR65LA1SS(GK), THK, Linear Slide With Recirculating Ball Design
