SKF endoscopes

The SKF Endoscope TKES 10 is a compact handheld instrument that allows the user to view applications in restricted spaces that could not normally be seen with the naked eye.

1-18 of 18 products

TKES 10F, SKF, Endoscope with flexible tube TKES 10F,  SKF,  Endoscope with flexible tube SKF

Endoscope, Flexible tube, 5.8 mm (0.23 in.), 1 Mtr (39.4 in.), -20 to +60 °C (-4 to +140 °F), 1.5-6 cm (0.6-2.4 in.), EAN code: 7316575126247

$1,118.11
Brand SKF
Mfr Part No. TKES 10F

TKES 10S, SKF, Endoscope with semi-rigid tube TKES 10S,  SKF,  Endoscope with semi-rigid tube SKF

Endoscope, Semi-rigid tube, 5.8 mm (0.23 in.), 1 Mtr (39.4 in.), -20 to +60 °C (-4 to +140 °F), 1.5-6 cm (0.6-2.4 in.), EAN code: 7316575126254

$1,118.11
Brand SKF
Mfr Part No. TKES 10S

TKES 10A, SKF, Endoscope with articulated tube TKES 10A,  SKF,  Endoscope with articulated tube SKF

Endoscope, Articulating tube, 5.8 mm (0.23 in.), 1 Mtr (39.4 in.), -20 to +60 °C (-4 to +140 °F), 2-6 cm (0.8-2.4 in.), EAN code: 7316575126308

$1,567.13
In stock
Brand SKF
Mfr Part No. TKES 10A

TKES 10-DU, SKF, Endoscope without tube TKES 10-DU,  SKF,  Endoscope without tube SKF

Endoscope, 5.8 mm (0.23 in.), 1 Mtr (39.4 in.), -20 to +60 °C (-4 to +140 °F), 2-6 cm (0.8-2.4 in.), EAN code: 7316575151423

$900.94
Brand SKF
Mfr Part No. TKES 10-DU

What are the features and benefits of SKF endoscopes?

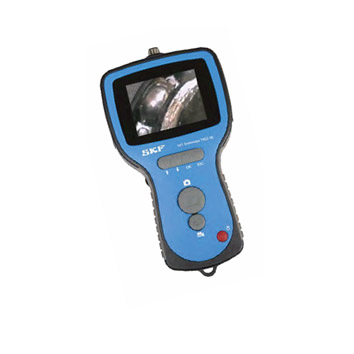

SKF endoscope TKES 10

The display unit with a 3.5” TFT LCD screen has the capacity of viewing, storing and reviewing still and video images. Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The flexible insertion tube uses a miniature camera, equipped with powerful variable LED lighting, to provide the screen image. The TKES 1 can be used as a first line inspection tool and save time and money by reducing the need to disassemble items for inspection.

  • Compact, palm sized endoscope allows true portability
  • Easy to assemble and use, no special training required
  • Advanced high quality optics gives an excellent full screen image and good resolution compared to fibre optic type endoscopes
  • The 3.5” extra-wide view angle and clear TFT monitor, protected by oil and scratch resistant tempered glass allows for easy viewing of photos and videos and helps image interpretation
  • Fully flexible 1 metre (3.3 ft) insertion tube with a small tip diameter of 5,5 mm allows easy access to most applications
  • The 1 GB SD memory card provided can store up to 30 000 photos or 4–5 hours of video. This is more than enough for almost any user
  • Photos and videos can be transferred to PC using the USB cable provided. No special software required for most MS Windows operating systems
  • Built-in step-less adjustable LED lighting helps prevent under and over illumination of target
  • Water resistant flexible tube can be used in applications where moisture is present
  • 67 ° field of view offers an excellent viewing range for restricted space applications
  • Supplied with right-angle side view adapter
  • Multilingual menu on display unit
  • Supplied complete with all necessary cables, universal mains charger and carrying case

Other Endoscopes in the SKF range include the TMES series:

The series includes the TMES 1 (Basic) and the TMES 2 (Advanced) offering easy, effective inspection in restricted areas. Ask our sales team for further details.
