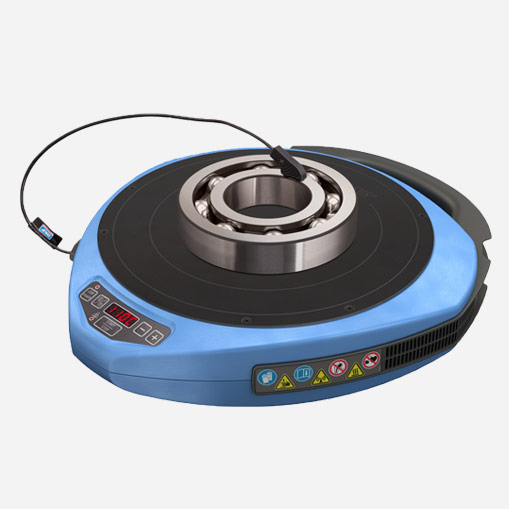

Hire the mobile bearing heater TWIM 15

Hire rate starting from £200

Use the TWIM15 230v induction bearing heater to fit bearings with a bore diameter from 20mm and a maximum outer diameter of 320mm. The TWIM 15 can be used to heat bearings and other ring-shaped, metalic components up to a maximum component weight of 20kg.

Bearing weight range: 0.5Kg - 20kg
Min. bearing bore diameter: 30mm
Max. bearing outer diameter: 320mm
Max. bearing width: 85mm

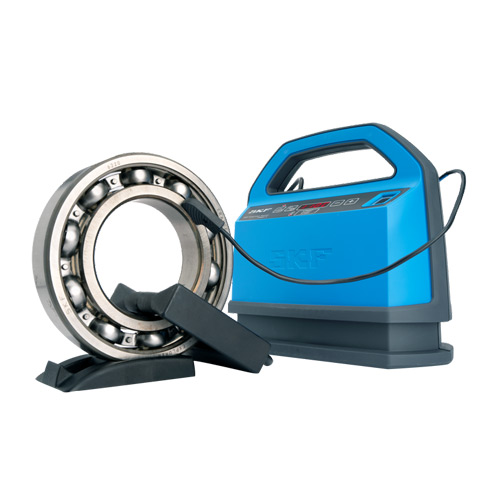

Hire the mobile bearing heater SKF TMBH 5

Hire price starting from £200

Small, portable induction heater, suitable for worktops
Versatile enough to be used in a range of situation, including at a work bench, on
the factory floor, or out in the field. Heat is generated within the bearing through an
induction clamp for very efficient heating.

Bearing weight range: up to 5kg
Min. bearing bore diameter: 20mm
Max. bearing outer diameter: 100mm
Max. bearing width: 50mm

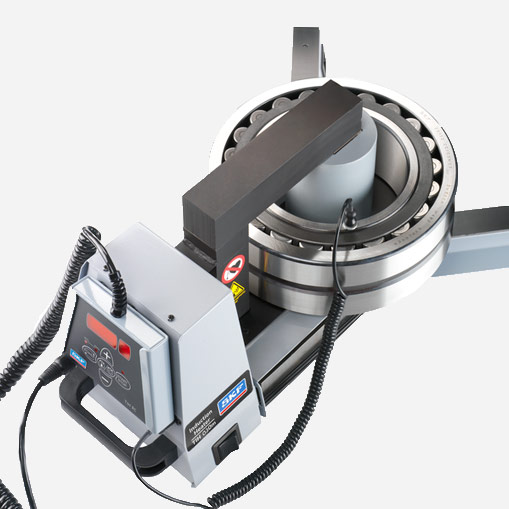

Hire the portable bearing heater TIH030m

Hire price starting from £230

The TIH 030m is a compact and lightweight solution that is capable of heating bearings within a matter of minutes. Use this 230v induction bearing heater to fit bearings with a bore diameter from 20mm to 300mm and a maximum weight of 40Kg.

Max. bearing weight: 40kg
Bore diameters: 20mm - 300mm
Temperature range: 20 - 250°c

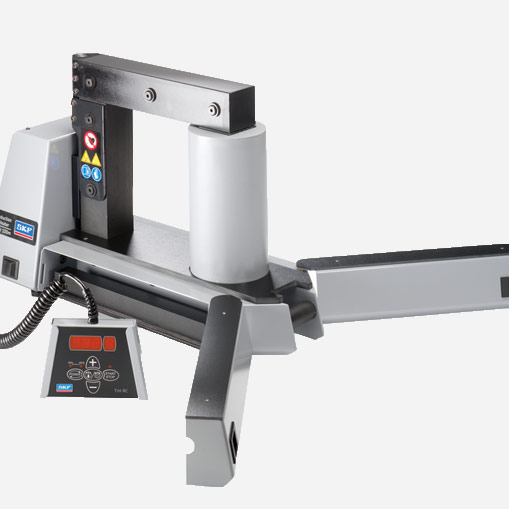

Hire the SKF TIH100m

Hire price starting from £340

Medium size heater, ideal for use on workbenches.

The SKF TIH 100M is a medium sized bearing heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater is supplied with a swivel yoke and two optional yokes for smaller bearings. The TIH 100M can heat small bearings with a bore diameter of just 20 mm and larger bearings with a maximum weight of 120 kg.

Max. bearing weight: 120kg
Bore diameters: 20 - 400mm
Temperature range: 20 - 250 °c

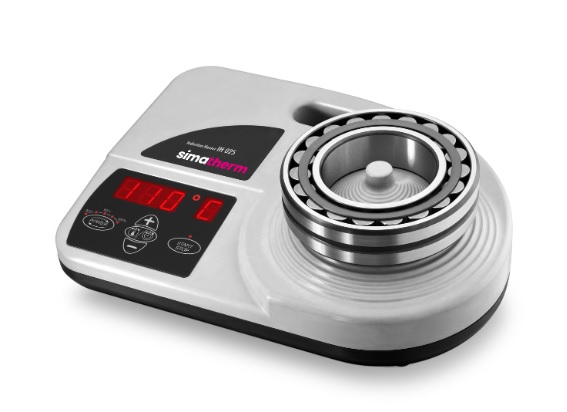

Hire the Simatec IH025

Hire price starting from £225

With a weight of only 3.5 kg, the simatherm IH 025 VOLCANO is the lightest portable bearing heater in the world. The patented technology enables outstanding heating performance from an extremely light structure. You can use it to heat rolling bearings with an inner diameter as small as 20 mm up to on outer diameter of 160 mm and a weight of up to 10 kg

Max. bearing weight: 10kg
Bore diameters: 20mm - 160mm
Temperature range: 20 - 180 °c

Hire the Simatec IH045

Hire price starting from £250

The IH 045 is suitable for heating small and medium-sized workpieces up to 45 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in eight stages if required.

Max. bearing weight: 45kg
Bore diameters: 20mm - 310mm
Temperature range: 20 - 180 °c

Hire the Simatec IH125 Swivel Arm

Hire price starting from £350

The new simatherm IH 125 offers precise and fast heating of rolling bearings and other workpieces weighing up to 150 kg. With integrated app control, the application is safer and more efficient than ever before. Whether for continuous operation or specific applications, the IH 125 adapts flexibly to your requirements.

Max. bearing weight: 150kg
Bore diameters: 20mm - 400mm
Temperature range: 20 - 250 °c

Hire Bearing Handling Tools

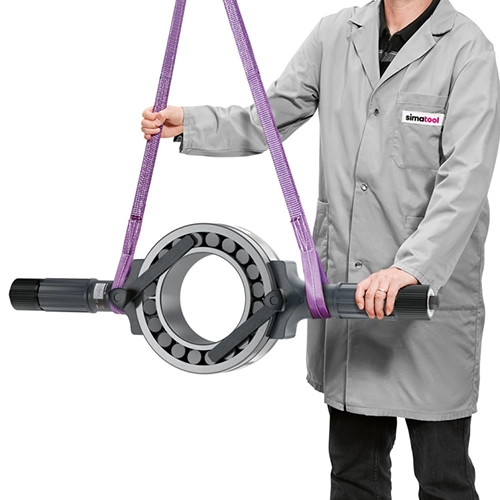

Simatec Bearing Handling Tool

Hire price starting from: £100

Multiple sizes available: BHT 200-400, BHT 300-500, BHT 500-700. Facilitates safe handling of large size bearings. Two handles on opposite sides and two carrying belts, bearings can be easily transported with a lifting crane. Bore remains open so bearings can be safely and easily placed onto a shaft.

Max. lifting force: 150kg (BHT 200-400)
Outer diameter: 200-400mm (BHT 200-400)
Max. lifting force: 500kg (BHT 300-500)
Outer diameter: 300-500mm (BHT 300-500)
Max. lifting force: 500kg (BHT 500-700)
Outer diameter: 500-700mm (BHT 500-700)

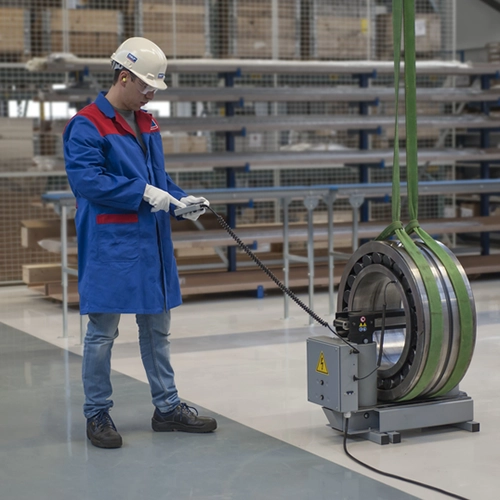

Mobile Heating Services

Hire a service engineer to heat and mount your workpiece from £750

ACORN can offer a full heating and mounting service. Save precious time while ensuring bearings are mounted safely and securely and all for a fraction of the cost of an induction heater. This service can also be used for mounting other components, such as gears, couplings, and spacers etc.

Heater details

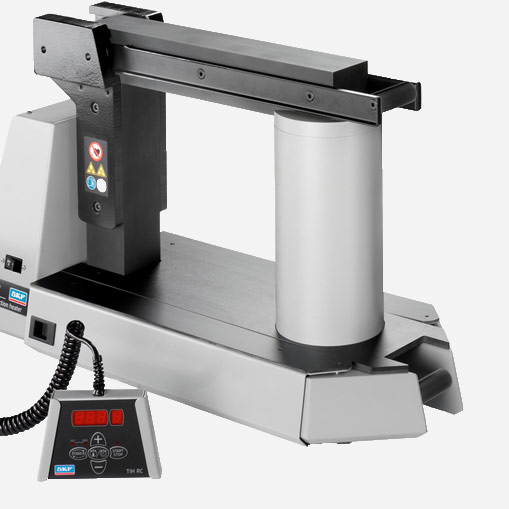

SKF TIH 220m

Capable of heating a 220kg (480lb) bearing in just 20 minutes.
Two yokes, allowing bearings with a bore diameter from 60mm (2.3in)up to a maximum weight of 300kg (660lb) to be heated.
Sliding arm for large size yoke.
415v twin phase 32A supply required.

How to hire equipment

Hiring maintenance equipment from ACORN is easy. Simply follow these steps:

STEP 1. Select the equipment required. Our product specialists are
on hand to offer assistance if you have any questions.

STEP 2. Decide the duration. Hire from one day, a week or more.
We’re very flexible, and should you decide that you require the
equipment for longer, simply give us a call to extend the hire period.

STEP 3. Call 0800 8766 441 to arrange your hire. Our friendly sales
team will be happy to arrange everything.

STEP 4. Choose whether to collect the equipment or have it
dispatched by our team.

STEP 5. Return the equipment, or we can arrange the collection for
you.

Prefer to buy a bearing heater?

Check out our range of bearing heaters for sale today

ACORN® is committed to providing high-quality industrial solutions, ensuring that their bearing heaters deliver exceptional performance and reliability. With a wide range of options available, ACORN® makes it easy to find the right bearing heater for your specific needs.
