Needle roller type
| Brand | Ewellix |
|---|---|
| Mfr Part No. | LWM 70400800 |
| Acorn Code | LWM70400800-EWX |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |

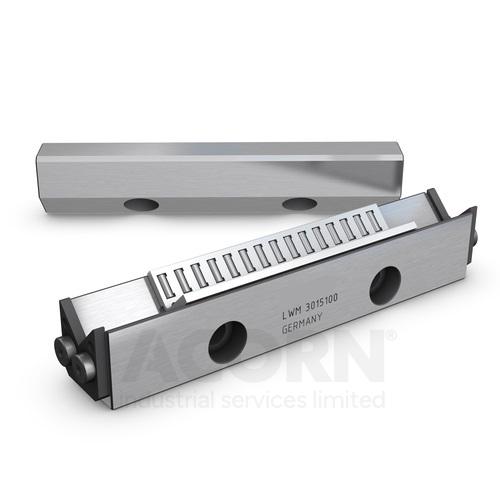

LWM rail guides enable linear guiding systems to be designed for heavy loads and with maximum rigidity. The internal geometry is identical with that of the Modular Range rails of the LWRM series. As the same needle roller assembly is used, the load ratings are also the same. The external dimensions of the LWM rail guides differ slightly from those of the LWRM Modular Range dimensions. LWM rail guides are widely used, especially in the machine tool industry. As standard, they are supplied with mounting holes of type 15 (through hole with counter bore)
| Manufacturer Product Code | LWM 70400800 |
|---|---|
| Basic Product Description | Precision Rail Guide - Needle Roller Assembelies |
| UOM | EACH |
| id (mm) | 70 |
| od (mm) | 40 |
| lengthmm | 800 |
| Height (mm) | 40 |
| Weight (Kg) | 7.92 |
| Series | Rail guides |
| Model Number | M/2220066 |
| Technical 1 | -30 to +80 °C |
| Speed | 2 m/s |
| Technical 4 | 100 |
| Basic Reference | EWELLIX Code : M/2220066 |
