FLRBU 7 (1+3) KMT-EWX, EWELLIX, Flanged thrust bearing unit with 3 bearings carring the main application load

EWELLIX Code : M/1145827, 65, 7313 BEGBP

Brand EWELLIX
Mfr Part No. FLRBU 7 (1+3) KMT-EWX
Acorn Code FLRBU7(1-3)+KMT-EWX
HS Code 8482 99 00 90
COO FR
+

View our price now >

Alternatively, get a quote from our sales team

To assist in the design and assembly process, Ewellix has developed a standard assortment of support bearings which consists of a housing, a bearing arrangement and seals. The bearings are adjusted at the factory to improve stifness and running accuracy. Supports bearings are flled with grease at the Ewellix factory and are easy to install. Standard support bearings are specifcally designed for roller screws with nominal diameters from to 8 mm to 80 mm (planetary roller screws) and from 8 mm to 125 mm (recirculating roller screws). These support bearings can easily be mounted on the screw shaft ends, following Ewellix recommendations for standard machined ends. For larger roller screws, a preselection of spherical roller thrust bearings is also available.

Specification

Product Attributes
Manufacturer Product Code FLRBU 7 (1+3) KMT-EWX

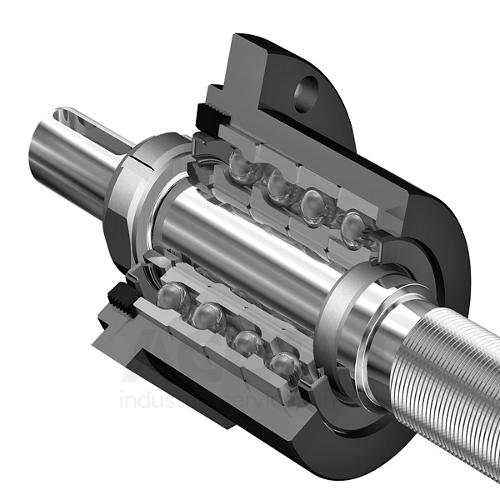

Basic Product Description Flanged thrust bearing unit with 3 bearings carring the main application load
UOM Unit
Bore diameter (mm) 65
Carrying capacity - Dynamic Ca Kn 305
Carrying capacity - Static C0a kN 615
Bearing designation 7313 BEGBP
Number of bearings 4
Locknut KMT 13
Hook spanner HN 14
Weight (Kg) 25.06
Series FLRBU
