Imperial, EPDM, Gates code : 9014-02173, EAN code: 5400608074130

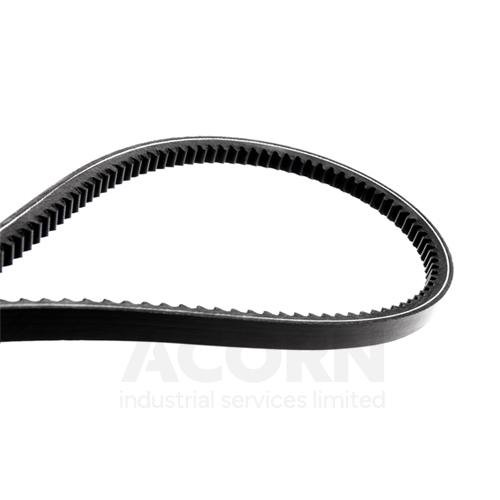

Gates Tri-Power™ V-belt is built for superior performance on heavy duty drives of classical crosssection. The raw edge construction and special notch design makes the Tri-Power™ belt especially suited for drives requiring small diameter pulleys and back idlers. The ethylene EPDM compound allows the belt to handle extreme temperatures up to +120°C.
| Manufacturer Product Code | CX173 |
|---|---|
| Basic Product Description | TRI-POWER®Cogged V Belt EPDM |
| Measurement | Imperial |
| UOM | Each |
| Inside Length Li (mm) | 4394 |
| Effective-Length-RMA-(mm) | 4496 |
| Section Width (mm) | 22 |
| Section Height (mm) | 14 |
| Inside Length Li (in) | 173 |
| Effective-Length-RMA-(inch) | 177 |
| Weight (Kg) | 1.45 |
| Variance | Bandless-notched |
| Section | CX |
| Material | EPDM |
| Cord Type | Polyester |
| Temperature range | -50'c to +120'c |
| Technical | Static conductive (ISO 1813) |
| Technical | REACH and RoHS 2 compliant. |
| Technical | Raw edge, molded notch construction saves up to 3% on energy costs over wrapped belts |
| Basic Reference | Gates code : 9014-02173 |
| Series | TRI-POWER® |
| EAN | 5400608074130 |
