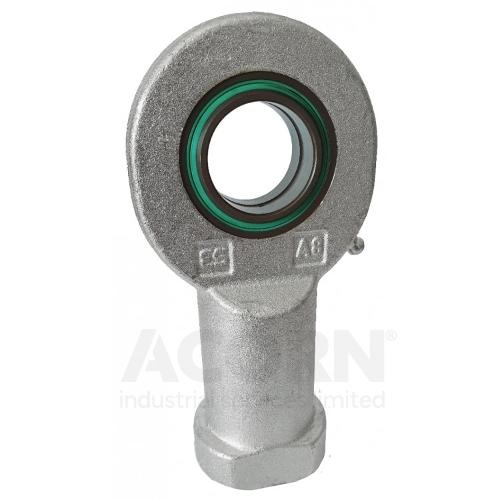

FIL70 D-2RS, Neutral, Rod end

Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M56 x 4

Brand Neutral
Mfr Part No. FIL70 D-2RS
Acorn Code FIL70D-2RS-NEUTRAL
HS Code 8483 30 80 90
COO China (CN)

$56.38

+
in stock

COUPLING:
Steel/Steel requiring maintenance.
ISO12240-4 series E, type F. Wearing GE..DO (ISO12240-1) up to measure 30mm, from 35mm it is mounted GE..DO-2RS with protective seals.
Bearing pressed in shell.
Lubrication grease nipple assembled from measure 20mm.

MATERIAL:
Made in C45 steel, forged. Galvanized.
They present long internal thread, suitable for a wide one wheelbase adjustment.

APPLICATION FIELDS:
Rod end for heavy duty, inner threaded. For hydraulic cylinders and industrial links. Long thread allow to fix stroke.

Specification

Product Attributes
Manufacturer Product Code FIL70 D-2RS
Basic Product Description Rod end
Measurement Metric
UOM Each
Bore diameter, bearing inner ring (mm) 70
od (mm) 162
Width (mm) 49
Thread (mm) M56 x 4
Weight (Kg) 84
Features Female connection
Thread (L/R) Left-hand thread
Sealing solution Double lip seals
Housing material Galvanised C 45 forged steel
Bearing Material Steel/Steel
Bearing / Insert GE..DO-2RS
