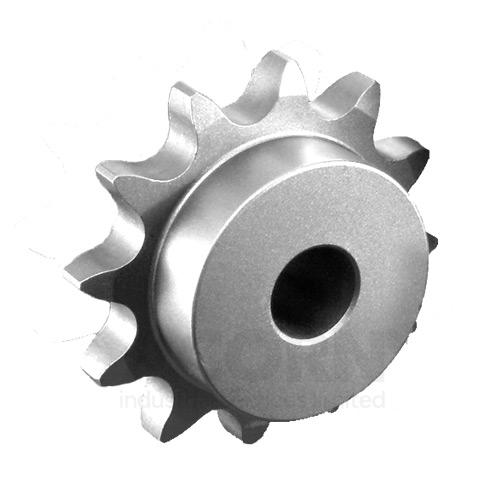

BS, Steel, Pilot Bore Sprocket
Pilot bore chain sprockets offer the flexibility of custom boring to suit a specific application or shaft size.
Used for the transmission of power between drive shafts through roller chains. Manufactured in steel or cast iron in a range of tooth pitches, designed for use with respective pitches of roller chain.
| Manufacturer Product Code | 10B-1-21 |
|---|---|
| Basic Product Description | Pilot Bore Sprocket |
| Standard BS/ANSI | BS |
| UOM | Each |
| Tooth Pitch (ANSI) Inch | 5/8 |
| No. Teeth (mm) | 21 |
| External Diameter (mm) | 113.4 |
| Pitch Diameter (mm) | 106.52 |
| Bore/id (mm) | 16 |
| Hub Size (mm) | 75 |
| Width (mm) | 30 |
| Weight (Kg) | 1.3 |
| Bore Type | Pilot Bore |
| No. Teeth Rows | Simplex - 1 Row |
| Material | Steel |
