Metric, Aluminium, 2-piece shaft collars, Bore size:25, Clamp style,
| Brand | Ruland |
|---|---|
| Mfr Part No. | ENSP45-25MM-A |
| Acorn Code | ENSP45-25MM-A-RULAND |
| HS Code | 8483 50 80 90 |
| COO | United States (US) |

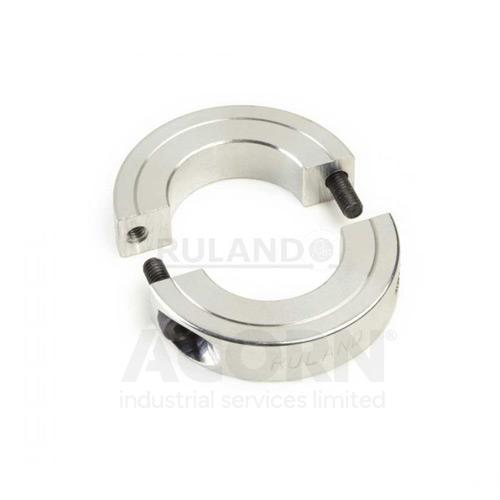

Ruland ENSP-A is a two-piece thin line shaft collar.
The narrow profile reduces weight and allows for use in confined spaces. It has the clamp style benefits of not marring the shaft, easy removability, and indefinite adjustability while commonly being used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
ENSP-A is stamped with the Ruland name for ease of identification. Two-piece styles are mated throughout the manufacturing process for proper fit and alignment. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power.
ENSP-A is manufactured from solid bar stock sourced from select North American mills and machined to a fine burr free finish. Ruland uses high grade 2024 aluminium for increased screw seating torque.
| Manufacturer Product Code | ENSP45-25MM-A |
|---|---|
| Basic Product Description | Thin line, Two-piece shaft collar |
| Measurement | Metric |
| UOM | Each |
| Bore size (mm) | 25 |
| Type | Clamp style |
| Material | Aluminium |
| Outer Diameter (OD) mm | 45 |
| Clearance Diameter (C) MAX (mm) | 48 |
| Width (W) mm | 10 |
| Recommended Gap (mm) | 1.6 |
| Weight (Kg) | 0.031 |
