TMHP 15/260, SKF, Hydraulically Assisted Heavy Duty Jaw Puller set with hydraulic pump, oil and connections.

Hydraulic Pullers, EAN code: 7316571092782

SKF Authorised distributor logo
Brand SKF
Mfr Part No. TMHP 15/260
Acorn Code TMHP15/260-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

XXX

$6,489.69

+

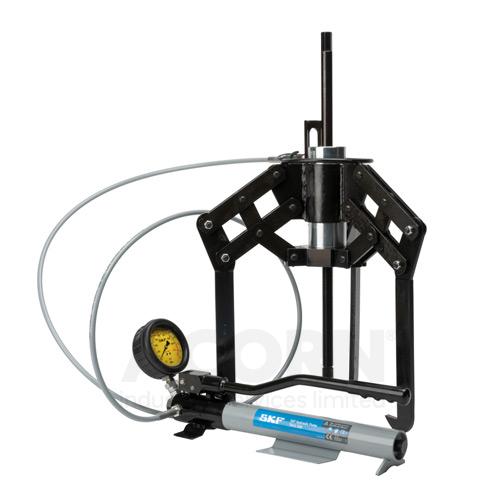

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 15/260 is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combination of a spindle and a hydraulic cylinder helps to mount the puller quickly. The SKF TMHP 15/260 is supplied in a complete ready-to-use set with hydraulic pump, oil and connections.

• High pulling forces can be applied easily and safely with self-centring puller
• Easy adjustable worklength through combination of spindle and hydraulic cylinder
• Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
• Simple operation with lifting handle and eye bolt
• Ready-to-use with SKF Hydraulic Pump TMJL 100, fleXible high pressure hose and hydraulic oil included

Specification

Product Attributes
Manufacturer Product Code TMHP 15/260
Basic Product Description Hydraulically Assisted Heavy Duty Jaw Puller set with hydraulic pump, oil and connections.
UOM Set
Number of arms 3
Weight (Kg) 34
Kit Contents c/w hydraulic pump, oil and connections
Stroke 100mm
Claw Height 30mm
Hydraulic spindle / pump SKF TMJL 100 (included)
Effective arm length/Reach 264 mm
Maximum withdrawal force (kN) 150 kN
Max Working Pressure hydraulic cylinder 80MPa
Puller Type or Accessories Hydraulic Pullers
Series TMHP
EAN code 7316571092782
