Hydraulic Pullers, EAN code: 7316570221893

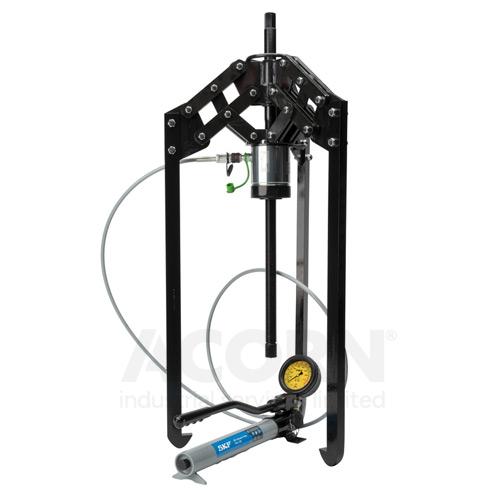

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 30/600 is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combination of a spindle and a hydraulic cylinder helps to mount the puller quickly. The SKF TMHP 30/600 is supplied in a complete ready-to-use set with hydraulic pump, oil and connections.
• High pulling forces can be applied easily and safely with self-centring puller
• Easy adjustable worklength through combination of spindle and hydraulic cylinder
• Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
• Simple operation with lifting handle and eye bolt
• Ready-to-use with SKF Hydraulic Pump TMJL 100, fleXible high pressure hose and hydraulic oil included
| Manufacturer Product Code | TMHP 30/600 |
|---|---|
| Basic Product Description | Hydraulically Assisted Heavy Duty Jaw Puller set with hydraulic pump, oil and connections. |
| UOM | Set |
| Number of arms | 3 |
| Weight (Kg) | 56 |
| Kit Contents | c/w hydraulic pump, oil and connections |
| Stroke | 50mm |
| Claw Height | 35mm |
| Hydraulic spindle / pump | SKF TMJL 100 (included) |
| Effective arm length/Reach | 600 mm |
| Maximum withdrawal force (kN) | 300 kN |
| Max Working Pressure hydraulic cylinder | 80MPa |
| Puller Type or Accessories | Hydraulic Pullers |
| Series | TMHP |
| EAN code | 7316570221893 |
