TMHP 30/600X, SKF, Hydraulically Assisted Heavy Duty Jaw Puller

Hydraulic Pullers, EAN code: 7316577311436

SKF Authorised distributor logo
Brand SKF
Mfr Part No. TMHP 30/600X
Acorn Code TMHP30/600X-SKF
HS Code 8482 99 00 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

XXX

$7,702.91

+

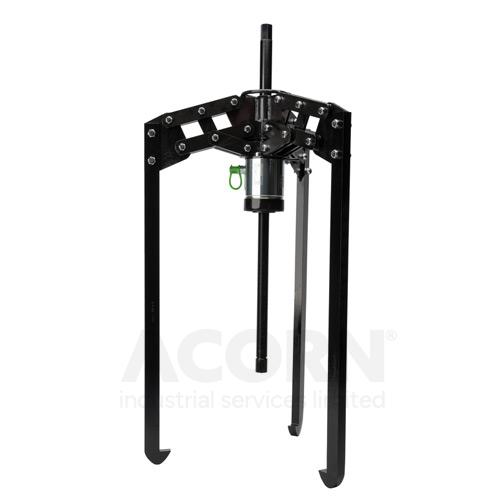

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 30/600X is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combination of a spindle and a hydraulic cylinder helps to mount the puller quickly. The SKF TMHP 30/600X comes without hydraulic pump and allows own equipment to be used.

• High pulling forces can be applied easily and safely with self-centring puller
• Easy adjustable worklength through combination of spindle and hydraulic cylinder
• Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
• Simple operation with lifting handle and eye bolt

Specification

Product Attributes
Manufacturer Product Code TMHP 30/600X
Basic Product Description Hydraulically Assisted Heavy Duty Jaw Puller
UOM Each
Number of arms 3
Weight (Kg) 56
Stroke 50mm
Claw Height 35mm
Effective arm length/Reach 600 mm
Maximum withdrawal force (kN) 300 kN
Max Working Pressure hydraulic cylinder 80MPa
Puller Type or Accessories Hydraulic Pullers
Series TMHP
EAN code 7316577311436
