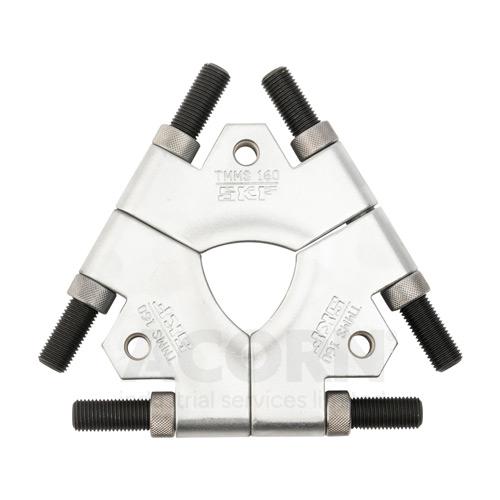

TMMS 160, SKF, Tri-section pulling plate

The tri-section pulling plate TMMS 160 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimising the risk of bearing damage.

• Efficient bearing dismounting with unique design to direct dismounting forces directly to the bearing inner ring
• No bearing damage from dismounting forces that go through the bearing outer ring and rolling elements
• Even force distribution revents bearing bearing locking or tilting during dismounting
• Wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft
• Suitable for use in combination with any three-armed bearing puller

Specification
