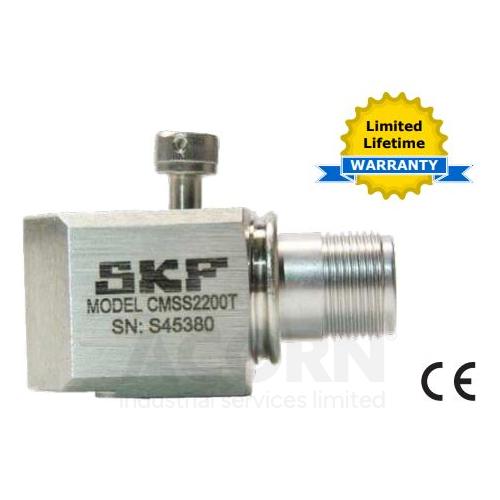

CMSS 2200T, SKF, Industrial sensor, side exit, (XDCR, ACCL, TEMP, SIDE EXIT)

The CMSS 2200T is a cost-effective, dual output sensor ideal for light to medium-duty applications, where both vibration and temperature measurements are required. The CMSS 2200T is typically used in the following industries:
• Pulp and Paper
• Food and Beverage
• Automation
• Metals
• Water and Waste Water

Common applications include general purpose machines such as pumps, motors and fans.

Features:
• For use with all SKF on-line surveillance systems
• Measures both acceleration and temperature
• Low profile
• Rugged, corrosion resistant and hermetically sealed for installation in high humidity areas
• 100 mV/g sensitivity to optimize use in multiple applications
• 10 mV/°C temperature output sensitivity
• Meets CE, EMC requirements
• ESD protection
• M6 and 1/4-28 captive mounting bolts provided
• Miswiring protection
