EAN code: 7316571672984
| Brand | SKF |
|---|---|
| Mfr Part No. | CMSS 2207 |
| Acorn Code | CMSS2207-SKF |
| HS Code | 8482 99 00 90 |
| COO | XXX |

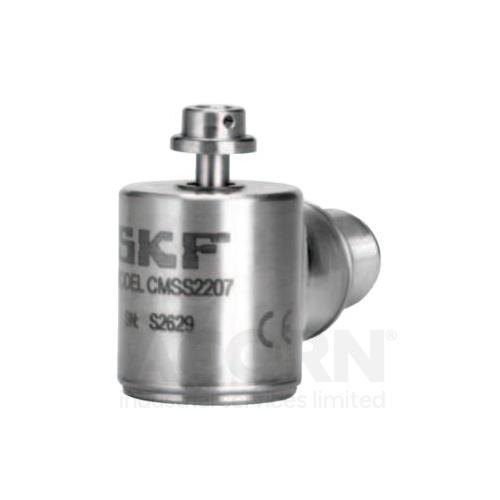

The CMSS 2207 accelerometer is a multi-purpose sensor with an elevated temperature resistance to extend life and performance in applications that are known to provide a challenging hot environment. The sensor is most commonly deployed in the following industries:
• Pulp and Paper - dryer sections
• Mineral Processing - ovens and kilns
• Metalworking - hot rolling mills
Features:
• Optimal for use with SKF on-line system IMx and all portable data collection instruments
• Rugged, economical and all around high temperature, general purpose sensor for up to 150 °C (300 °F) operating temperature
• 100 mV/g sensitivity to optimize use in multiple applications
• Exceptional bias voltage (BV) stability at elevated temperatures
• Designed for exceptional low noise level over a wide temperature range
• Meets CE, EMC requirements
• Captive mounting bolts (1/4-28 or M6 × 1.0) provided
• Corrosion resistant and hermetically sealed for installation in high humidity areas
• Reverse polarity wiring protection
| Manufacturer Product Code | CMSS 2207 |
|---|---|
| Basic Product Description | Industrial accelerometer, High temperature, side exit (XDCR,ACCL,LO PF,HI TEMP) |
| UOM | Each |
| Weight (Kg) | 0.15 |
| Certification | CE, EMC requirements |
| Material | 316L Stainless steel case |
| Sensor Sensetivity | 100 mV/g |
| EAN | 7316571672984 |
