Metric, Cast Iron, HRC Coupling Hub, 69, EAN code: 07316572623114
| Brand | SKF |
|---|---|
| Mfr Part No. | PHE FRC70RSB |
| Acorn Code | FRC70RSB-SKF |
| HS Code | 8483 50 80 90 |
| COO | China (CN) |

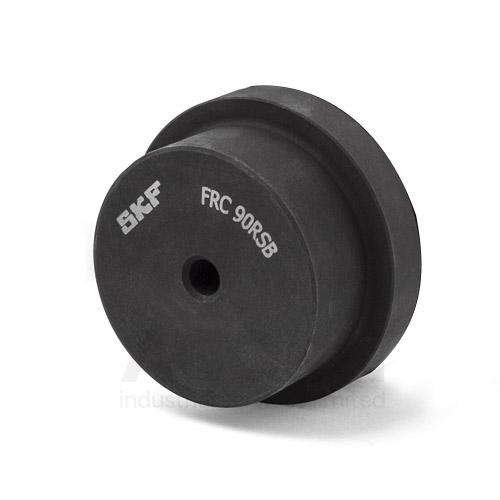

FRC coupling with solid bore
With a higher load capacity than jaw couplings and virtually maintenance-free operation, FRC couplings are designed as a general-purpose coupling. The RSB type has a solid bore, which makes it possible for it to be drilled to the desired bore dimension.
FRC couplings are able to cushion moderate shock loads, dampen low levels of vibration and accommodate incidental misalignment.
• Designed for high speed
• Relative high load carrying capacity
• Accommodate incidental misalignment, moderate shock loads and vibrations
• Virtually maintenance-free
| Manufacturer Product Code | PHE FRC70RSB |
|---|---|
| Basic Product Description | FRC coupling Type B |
| Measurement | Metric |
| UOM | Each |
| Group/Size | 70 |
| Diameter | 69 |
| Hub diameter | 60 |
| Coupling hub width | 20 |
| Type | Type RSB (Solid) |
| Weight (Kg) | 0.479 |
| Material | Cast Iron |
| Component | Hub |
| Bore Profile | Pilot bored |
| Ma-1 Material 1 | Cast Iron |
| EAN-Code | 07316572623114 |
