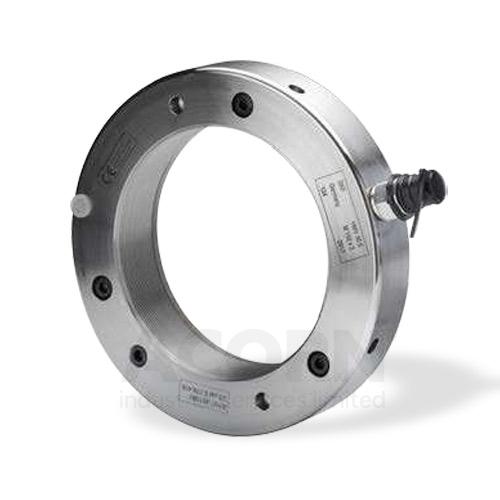

HMV 52E, SKF, Hydraulic nut (E Series)
Nut, Tr 260x4
| Brand | SKF |
|---|---|
| Mfr Part No. | HMV 52E |
| Acorn Code | HMV52E-SKF |
| HS Code | 8482 99 00 90 |
| COO | DE |
Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. Dismounting bearings mounted on either adapter or withdrawal sleeves can also be simplified by using an SKF Hydraulic Nut.
Specification
| Manufacturer Product Code | HMV 52E |
|---|---|
| Basic Product Description | Hydraulic nut (E Series) |
| UOM | Each |
| Piston inner diameter (d1) mm | 262 |
| Piston outer diameter (d2) mm | 341 |
| Nut body outer diameter (d3) mm | 356 |
| Width of nut body (B) mm | 47 |
| Piston width (B1) mm | 9 |
| Weight (Kg) | 19 |
| Thread | Tr 260x4 |
| Mounting | HMV52/233983 |
| Features | • Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. • A spare set of piston seals and maintenance kit is supplied as standard. • Nut supplied with a quick connection coupling to fit the SKF hydraulic pumps. |
| Permitted piston displacement (mm) | 11 |
| Piston area (mm2) | 18.8 |
| Maximum allowed working pressure (MPa) | 80 MPa |
| Product type | Nut |
