TKSU10, SKF, Ultrasonic leak detector

Accessory, Colour OLED

Brand SKF
Mfr Part No. TKSU10
Acorn Code TKSU10-SKF
HS Code 8482 99 00 90

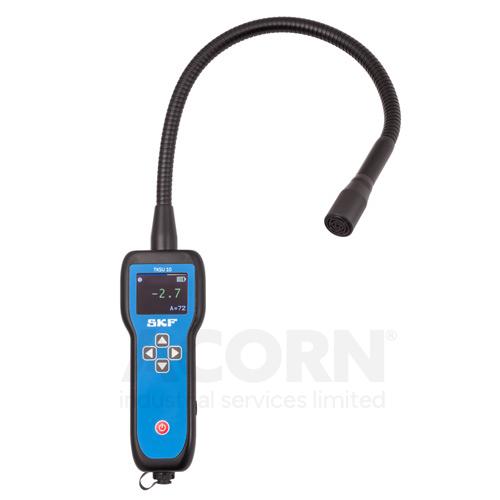

The SKF TKSU 10 is an ultrasonic leak detector that helps users to quickly find leakages in compressed air or vacuum systems. Leakages increase the load on the equipment and result in higher operation and maintenance costs. The TKSU 10 is very simple to use and helps users to easily find leaks from a distance, even in noisy industrial environments, via its ultrasound measurement sensor. The instrument features adjustable sensitivity and intuitive LED display gives guidance for superior leak detection results.
The TKSU 10 is designed for use in all industries utilizing compressed air, and it is particularly recommended for paper and chemical industries, as well as workshops with air-driven power tools.


Product Attributes
Manufacturer Product Code TKSU10
Basic Product Description Quick and easy detection of leaks of vaccuum or pressurized air systems
Weight (Kg) 1.71
Features • Easy and intuitive to use; no training required
• Leak detection from a distance in noisy industrial environments
• High quality neckband headset for usage with protective helmets included
• Color LED display assists users in adjusting sensitivity settings and shows measurement values
• Independently adjustable sensor sensitivity and headset volume
Display Colour OLED
Measurement channel 1 channel via a 7 pole LEMO connector
Battery 2x 1.5V AA Alkaline
Keyboard 5 function keys
Measuring range -6 to 99.9 dBμV (reference 0 dB = 1 μV)
Resolution 0.1 dBμV
Measurement bandwidth 35 to 42 kHz
Signal amplification +30 to +102 by steo of 6 dB
Maximum output +83 dB SPL with supplied headset
Headset 25 dB NRR Peltor HQ headset
Headset connector Stereo jack connector 6.35 mm
Housing Material ABS
IP rating IP42
Flexible rod length 445 mm
Operating Temperature -10 to 50 °C
Battery life 4 hours
Product type Detector
