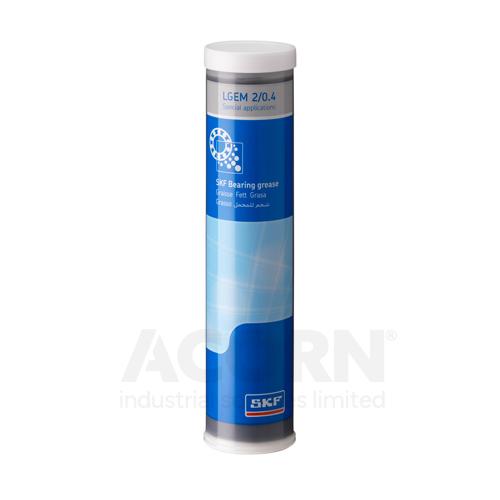

LGEM 2/0.4, SKF, High viscosity grease, cartridge

Grease, Cartridge, > 180 °C, 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max., 50 hours at 80 °C, 10-1 mm: 345 max., 2 max. at 100 °C, EAN code: 7316577045256

SKF Authorised distributor logo
Brand SKF
Mfr Part No. LGEM 2/0.4
Acorn Code LGEM2/0.4-SKF
HS Code 2710 12 15 00
COO Germany (DE)

$17.57

+
in stock

SKF LGEM 2 is a high viscosity, mineral oil based grease using a lithium soap. Its content of molybdenum disulphide and graphite provides extra protection for harsh applications subjected to high loads, heavy vibrations and slow rotations
Typical applications:
• Rolling element bearings running at low speed and very high loads
• Jaw crushers
• Track laying machines
• Lift mast wheel
- Building machines such as mechanical rams, crane arms and crane hooks.
• High oxidation stability.
• Molybdenum disulphide and graphite provide lubrication even if the oil film breaks down

Specification

Product Attributes
Manufacturer Product Code LGEM 2/0.4
Basic Product Description High viscosity grease, cartridge
Size (Per Unit) 420 ml
UOM Each
Base Oil Viscosity cSt @ 40°C 500
Weight (Kg) 0.45
Dropping point > 180 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max.
Roll stability ASTM D1831 50 hours at 80 °C, 10-1 mm: 345 max.
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0;
Oil separation DIN 51 817 7 days at 40 °C: 1-5 %
Copper corrosion DIN 51811 2 max. at 100 °C
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3400 N
Thickener Lithium
Base type Mineral
Colour Black
Container Cartridge
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -20°C
Ex-2 Features 2 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max.
Ex-3 Features 3 50 hours at 80 °C, 10-1 mm: 345 max.
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0;
Series 7 days at 40 °C: 1-5 %
Model 2 max. at 100 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3400 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -20°C
Upper Operating Temperature +120°C
Basic Reference Grease
EAN code 7316577045256
