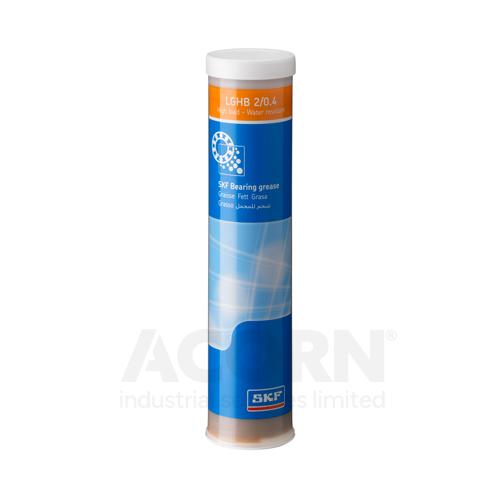

LGHB 2/0.4, SKF, High visc. high temp. grease, cartridge

Grease, Cartridge, > 220 °C, 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.), 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change, 2 max. at 150 °C, EAN code: 7316571182285

SKF Authorised distributor logo
Brand SKF
Mfr Part No. LGHB 2/0.4
Acorn Code LGHB2/0.4-SKF
HS Code 2710 12 15 00
COO Netherlands (NL)

$15.80

+
in stock

SKF LGHB 2 is a high viscosity, mineral oil based grease, using calcium sulphonate complex thickener. Formulated to withstand high temperatures and extreme loads, it is suitable for a wide range of applications, especially in the cement, mining and metals segments.

Features & benefits:
• Excellent load capacity, anti-oxidation and corrosion protection even with large water ingress
• Withstands peak temperatures of 200 °C (390 °F)

Typical applications:
• Steel on steel plain bearings
• Pulp and paper making machines
• Asphalt vibrating screens
• Continuous casting machines
• Sealed spherical roller bearings operating up to 150 °C (300 °F)
• Work roll bearings in steel industry
• Mast rollers of fork lift trucks

Specification

Product Attributes
Manufacturer Product Code LGHB 2/0.4
Basic Product Description High visc. high temp. grease, cartridge
Size (Per Unit) 420 ml
UOM Each
Base Oil Viscosity cSt @ 40°C 400
Weight (Kg) 0.4
Dropping point > 220 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.)
Roll stability ASTM D1831 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Oil separation DIN 51 817 7 days at 60 °C: 1-3 %
Copper corrosion DIN 51811 2 max. at 150 °C
Rolling bearing grease life ROF test, L50 life at 10000 r/min: > 1000 hrs at 130 °C
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: 0.86 mm; 4-ball test, welding load DIN 51350/4: > 4000 N
Thickener Complex calcium sulphonate
Base type Mineral
Colour Brown
Container Cartridge
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -20°C
Ex-2 Features 2 60 strokes, 10-1 mm: 265-295: 100000 strokes, 10-1 mm: - 20 to + 50 (325 max.)
Ex-3 Features 3 72 hours at 100 °C, 10-1 mm: - 20 to + 50 change
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Series 7 days at 60 °C: 1-3 %
Model 2 max. at 150 °C
In-3 Internal Features 3 ROF test, L50 life at 10000 r/min: > 1000 hrs at 130 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: 0.86 mm; 4-ball test, welding load DIN 51350/4: > 4000 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -20°C
Upper Operating Temperature +150°C
Basic Reference Grease
EAN code 7316571182285
