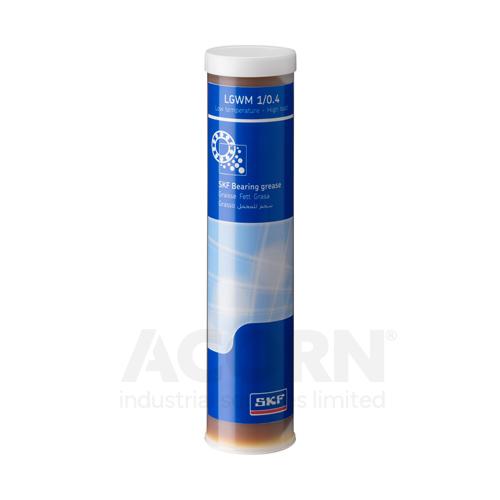

LGWM 1/0.4, SKF, Extreme Pressure (EP), low temperature grease, cartridge

Grease, Cartridge, > 170 °C, 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max., 2 max. at 90 °C, EAN code: 7316570443004

SKF Authorised distributor logo
Brand SKF
Mfr Part No. LGWM 1/0.4
Acorn Code LGWM1/0.4-SKF
HS Code 2710 12 15 00
COO Sweden (SE)

SKF LGWM 1 is a low consistency mineral oil based grease, using a lithium soap and containing extreme pressure additives. It is extremely suitable for the lubrication of bearings operating under both radial and axial loads.

Features & benefits:
• Good oil film formation at low temperatures down to -30 °C (-20 °F)
• Good pumpability down to low temperatures
• Good corrosion protection
• Good water resistance

Typical applications:
• Wind turbine main shafts
• Screw conveyors
• Centralised lubrication systems
• Spherical roller thrust bearing applications

Specification

Product Attributes
Manufacturer Product Code LGWM 1/0.4
Basic Product Description Extreme Pressure (EP), low temperature grease, cartridge
Size (Per Unit) 420 ml
UOM Each
Base Oil Viscosity cSt @ 40°C 200
Weight (Kg) 0.39
Dropping point > 170 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max.
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0
Oil separation DIN 51 817 7 days at 40 °C: 8-13 %
Copper corrosion DIN 51811 2 max. at 90 °C
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 3200 N
Thickener Lithium
Base type Mineral
Colour Brown
Container Cartridge
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -30°C
Ex-2 Features 2 60 strokes, 10-1 mm: 310-340; 100000 strokes, 10-1 mm: + 50 max.
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0
Series 7 days at 40 °C: 8-13 %
Model 2 max. at 90 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: < 1.8 mm; Weld load DIN 51350/4: > 3200 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -30°C
Upper Operating Temperature +110°C
Basic Reference Grease
EAN code 7316570443004
